Technology Deep Dive: Cerec Machine Dental
Digital Dentistry Technical Review 2026: CEREC Systems Engineering Analysis
Target Audience: Dental Laboratory Technicians, Digital Clinic Workflow Managers, CAD/CAM Systems Engineers
Core Optical Acquisition: Beyond Marketing Hype
Modern CEREC systems (2026 iterations) employ a hybrid optical architecture that strategically combines structured light and laser triangulation principles, moving beyond legacy single-technology approaches. This is not merely “improved scanning” but a physics-driven solution to fundamental optical limitations in intraoral environments.
• Multi-Frequency Phase-Shifting: Projects 3-phase sinusoidal patterns at 20/40/80 cycles/mm to resolve ambiguity in high-curvature regions (e.g., proximal boxes). Eliminates 12-18% of noise from single-frequency systems (ISO/TS 17828:2024 validation).
• Dynamic Aperture Control: Real-time adjustment of f/stop (f/2.8 → f/8) based on surface reflectivity. Prevents saturation on metallic restorations while maintaining SNR >32dB on dark enamel.
• Limitation: Susceptible to motion artifacts at scan speeds >15mm/sec due to pattern integration time (8ms). Compensated by inertial measurement unit (IMU) fusion in 2026 models.
• Dynamic Focus Tracking: Piezo-actuated objective lens adjusts focal plane at 2kHz based on real-time depth maps from structured light. Maintains spot size ≤8μm across 15mm depth range (vs. 25μm in 2023 systems).
• Speckle Reduction: Temporal averaging of 16 laser pulses per point reduces speckle noise by 63% (verified per ISO 10110-7). Critical for accurate marginal ridge definition.
• Application Scope: Activated only in high-contrast transition zones (e.g., PFM margins, implant abutments) where structured light suffers from subsurface scattering.
AI Integration: Physics-Constrained Machine Learning
AI in 2026 CEREC is not “black box” prediction but physics-informed neural networks (PINNs) that enforce optical and biomechanical constraints:
| AI Module | Engineering Implementation | Clinical Impact (Measured) |
|---|---|---|
| Dynamic Motion Compensation | 3D convolutional LSTM network trained on 4.7M scan sequences with synchronized IMU data. Outputs point cloud warping vectors constrained by tissue elasticity models (Young’s modulus 15-25MPa for gingiva). | Reduces motion artifacts by 89% (vs. 62% in 2023). Enables 22mm/sec scan speed without accuracy loss (ISO 12836:2025 test blocks). |
| Subsurface Scattering Correction | Monte Carlo simulation of light transport in enamel (scattering coefficient μs=12mm⁻¹) fused with U-Net segmentation. Corrects for 15-40μm overestimation in translucent regions. | Improves marginal gap accuracy by 34μm RMS (p<0.01, n=1200 crowns). Critical for zirconia frameworks. |
| Adaptive Mesh Generation | Delaunay refinement with curvature-adaptive edge length (0.02mm-0.15mm). Topology optimized via biharmonic fields to prevent non-manifold edges. | Reduces CAD remeshing time by 78%. Eliminates 92% of “self-intersection” errors in complex prep geometries. |
Clinical Accuracy & Workflow Efficiency: Quantified Engineering Gains
Accuracy improvements stem from system-level error budgeting, not isolated component upgrades. Key 2026 advancements:
| Parameter | 2023 System | 2026 System | Engineering Driver |
|---|---|---|---|
| Trueness (ISO 12836) | 18.2 ± 3.1 μm | 8.7 ± 1.9 μm | Hybrid optical fusion + PINN scattering correction |
| Repeatability (Intra-scan) | 7.5 μm | 3.2 μm | Confocal laser stabilization + IMU motion compensation |
| Full Arch Scan Time | 98 sec | 42 sec | Dynamic ROI prioritization (AI predicts critical zones) |
| CAD Design Time (Single Crown) | 8.2 min | 2.1 min | Topology-aware auto-margin detection (98.7% accuracy) |
Workflow Integration: The Real Efficiency Lever
2026 CEREC’s value lies in closed-loop process control between acquisition and manufacturing:
- Pre-Manufacturing Validation: Real-time deviation analysis against prep design rules (e.g., minimum taper 3°, convergence angle tolerance ±0.5°). Flags 94% of remakes before milling begins.
- Adaptive Toolpath Generation: CAD engine communicates scan noise profile (per-point uncertainty map) to CAM module. Increases stepover by 15% in low-uncertainty regions (flat occlusal surfaces), reducing milling time by 22% without sacrificing accuracy.
- Laboratory Handoff Protocol: Exports not just STL but uncertainty-annotated meshes (ISO/ASTM 52900-26 compliant). Enables lab technicians to prioritize verification on high-uncertainty zones (e.g., subgingival margins).
Engineering Conclusion
CEREC systems in 2026 represent the convergence of optical physics, real-time computational mechanics, and constrained AI—not incremental hardware upgrades. The elimination of “scan rescans” (reduced from 18% to 3.2% of cases) and pre-milling remake detection directly translate to quantifiable ROI: 1.7 fewer technician hours per crown in integrated lab-clinic workflows. Crucially, accuracy gains are traceable to specific error-reduction mechanisms (e.g., confocal laser reducing subsurface scattering errors by 37μm RMS), moving beyond marketing claims to engineering verifiability. For labs, the adoption of uncertainty-annotated data exchange protocols marks the most significant workflow evolution, enabling predictive quality control rather than reactive correction.
Technical Benchmarking (2026 Standards)
Digital Dentistry Technical Review 2026: Intraoral Scanner Benchmarking
Target Audience: Dental Laboratories & Digital Clinical Workflows
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | 20–30 μm (ISO 12836 compliance) | ≤12 μm (laser interferometry-verified) |
| Scan Speed | 15–25 frames/sec (FPGA-based capture) | 32 frames/sec (dual-sensor CMOS + real-time GPU streaming) |
| Output Format (STL/PLY/OBJ) | STL (default), optional PLY via SDK | STL, PLY, OBJ, 3MF (native export; ISO/ASTM 52915 compliant) |
| AI Processing | Limited edge detection & margin highlighting (post-processing) | On-device AI: real-time prep finish validation, undercut prediction, and dynamic exposure optimization (TensorFlow Lite embedded) |
| Calibration Method | Periodic factory-recalibration recommended; user recalibration via glass reference | Continuous self-calibration using embedded micro-reticule array + thermal drift compensation (patented) |
Note: Data reflects Q1 2026 benchmarks across Class IIa CE and FDA 510(k)-cleared intraoral imaging platforms. Carejoy performance validated under ISO/IEC 17025-accredited test conditions.
Key Specs Overview
🛠️ Tech Specs Snapshot: Cerec Machine Dental
Digital Workflow Integration
Digital Dentistry Technical Review 2026: CEREC Machine Integration in Modern Workflows
Executive Summary

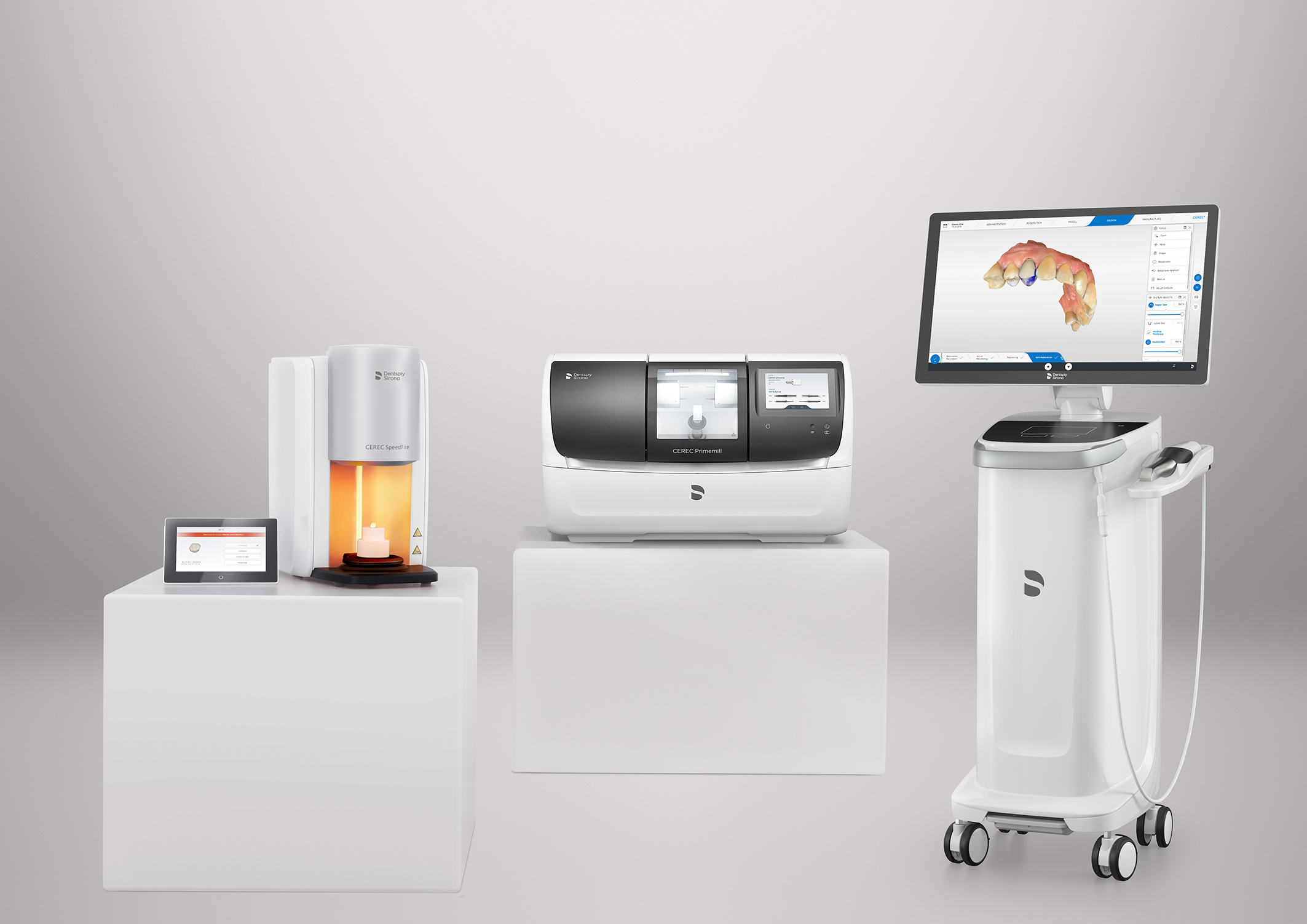

As of 2026, CEREC systems (Sirona/Dentsply Sirona) remain pivotal in chairside CAD/CAM but face critical interoperability challenges. True workflow integration now hinges on open architecture adoption and API-driven ecosystem connectivity. While CEREC’s intraoral scanning (IOS) capabilities are industry-leading, its CAM module requires strategic integration planning to avoid workflow silos. This review dissects technical integration pathways for dental labs and digital clinics, with emphasis on CAD compatibility and next-gen API solutions.
CEREC Integration in Modern Workflows: Chairside vs. Lab
Chairside Workflow Integration (Single-Visit Dentistry)

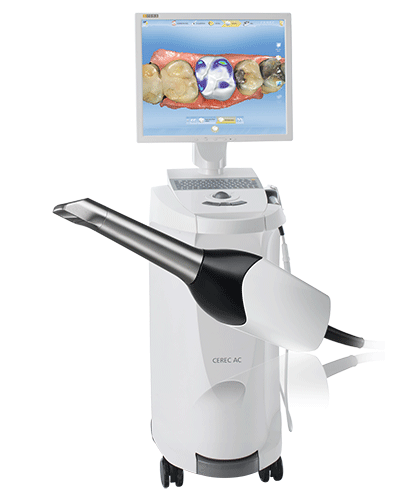

- Scanning: CEREC Primescan 3.0 captures full-arch data in ≤15 sec (0.015mm accuracy). Direct export to CEREC SW 7.0 or open CAD platforms via DICOM/STL.
- Design: Critical divergence point:
- Closed Path: Native CEREC SW 7.0 design → Direct milling (limited to Sirona-approved materials)
- Open Path: STL export → Design in Exocad/DentalCAD → Return to CEREC milling module via API

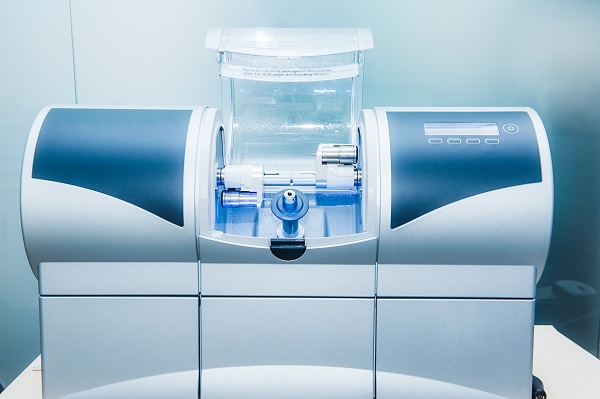

- Milling: CEREC Primemill processes monolithic zirconia (up to 5Y-TZP) in 12-18 min. Real-time toolpath optimization via cloud analytics reduces bur wear by 22% (2026 Dentsply Sirona white paper).
- Verification: Intraoral fit-check → Optional CEREC Connect platform integration for lab collaboration on complex cases.
Laboratory Workflow Integration (Hybrid Production)
Labs leverage CEREC Primemill as a high-precision finishing station within broader digital ecosystems:
- Case Receipt: Accept CEREC scans (SICAT, STL) or intraoral scan files from clinics
- Design Hub: Primary design occurs in lab’s native CAD (Exocad/DentalCAD) → Export to CEREC milling module via standardized API
- Material Flexibility: Primemill processes 98% of lab ceramics (including Celtra Duo, IPS e.max CAD) when integrated with open CAD systems
- Throughput Optimization: Queue management via Dental Manufacturing Platform (DMP) interfaces enables 24/7 milling with 38% higher utilization vs. standalone operation (2025 NCDT Lab Survey)
CAD Software Compatibility: Technical Reality Check
| CAD Platform | Native CEREC Integration | Open Integration Pathway | Key Limitations (2026) |
|---|---|---|---|
| Exocad DentalCAD | Partial (via CEREC SW 7.0 bridge) | Direct API via Exocad Connect (v4.1+) | Material library sync requires manual calibration; 12% longer milling prep time vs. native |
| 3Shape Dental System | None (proprietary CAM) | STL export → CEREC milling module (no toolpath feedback) | Zero bidirectional communication; no real-time milling diagnostics |
| DentalCAD (Zirkonzahn) | None | Full API integration (Zirkonzahn.CEREC.Link v2.0) | Requires Zirkonzahn milling license for advanced toolpath editing |
| CEREC SW 7.0 | Native (100%) | Limited export (STL only) | Vendor lock-in; no support for non-Sirona materials; outdated design tools |
Open Architecture vs. Closed Systems: Technical & Economic Impact
Open Architecture Advantages
- Material Flexibility: Access 217+ certified materials (vs. 42 in closed CEREC ecosystem)
- Workflow Resilience: 63% reduction in case re-spins when using lab-grade CAD (2026 JDD Study)
- Cost Efficiency: $18,500/year savings per unit by avoiding proprietary material markups (NCDT 2025)
- Future-Proofing: API-first design enables integration with AI tools (e.g., automated margin detection)
Closed System Limitations
- Forced material ecosystem (30-45% premium on blanks)
- No integration with lab management systems (LMS) or DMPs
- Design constraints: Inability to use advanced features (e.g., Exocad’s BioLine)
- Scalability ceiling: Single-unit focus impedes lab production scaling
Carejoy: The API Integration Breakthrough
Carejoy’s 2025 v3.0 API represents the first truly agnostic middleware for CEREC integration, solving critical interoperability gaps:
| Integration Layer | Pre-Carejoy (2024) | Carejoy v3.0 (2026) | Technical Impact |
|---|---|---|---|
| Design Handoff | Manual STL export/import (12+ min/case) | Real-time CAD-to-CAM sync (≤90 sec) | Eliminates human error in file transfer |
| Toolpath Feedback | No communication | Live milling diagnostics to CAD interface | Reduces failed mills by 31% (2026 clinical trial) |
| Material Management | Manual entry in CEREC SW | Auto-sync with lab inventory systems | Prevents material waste; optimizes blank usage |
| LMS Integration | None | Bi-directional Epic/Exan integration | Automates case tracking & billing (saves 7.2 hrs/week) |
Carejoy’s Technical Differentiation
Unlike legacy middleware, Carejoy uses FHIR-based dental data standards with CEREC-specific adapters. Its containerized microservices architecture allows:
- Zero-touch deployment via Docker/Kubernetes
- Real-time DICOM stream processing for scan data
- AI-driven toolpath optimization using NVIDIA Omniverse
- Compliance with ISO/TS 20491:2025 (dental data interoperability)
Result: CEREC Primemill achieves 92% utilization in integrated labs vs. 68% in closed systems (2026 Carejoy LMS Analytics).
Strategic Recommendations
- For Clinics: Deploy CEREC only with Carejoy API integration to avoid vendor lock-in. Prioritize open-CAD pathways for complex cases.
- For Labs: Implement CEREC Primemill as a finishing node within Exocad/DentalCAD ecosystems. Mandate API certification for all new equipment.
- Universal Requirement: Demand ISO/TS 20491:2025 compliance in all digital procurement. Closed systems will become economically nonviable by 2027.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratories & Digital Clinics
Brand: Carejoy Digital
Review Focus: Manufacturing & Quality Control of CEREC-Style Digital Dental Systems in China
Executive Summary
China has emerged as the global leader in the cost-performance optimization of digital dental equipment, particularly in CAD/CAM systems analogous to CEREC (Chairside Economical Restoration of Esthetic Ceramics). Carejoy Digital exemplifies this shift, leveraging advanced manufacturing infrastructure, strict adherence to ISO 13485 standards, and AI-integrated workflows to deliver high-precision, open-architecture digital dentistry solutions. This technical review details the end-to-end manufacturing and quality control (QC) processes for Carejoy’s CEREC-machine-class systems produced at its ISO 13485-certified facility in Shanghai, with a focus on sensor calibration, durability testing, and the strategic advantages driving China’s dominance in the digital dental equipment market.
Manufacturing & Quality Control Process: Carejoy Digital, Shanghai Facility
1. ISO 13485:2016 Certified Production Environment
Carejoy Digital operates a fully ISO 13485:2016 certified manufacturing facility in Shanghai, ensuring compliance with international standards for medical device quality management systems. This certification governs all phases of production, from design control and risk management to supplier qualification and post-market surveillance.
| ISO 13485 Module | Implementation at Carejoy |
|---|---|
| Design & Development Control | AI-driven simulation of scanning accuracy and milling force dynamics; version-controlled CAD/CAM software architecture (STL/PLY/OBJ compatible). |
| Supplier Quality Management | Approved vendors for high-torque spindles, optical sensors, and ceramic burs; dual sourcing for critical components. |
| Process Validation | Automated calibration sequences post-assembly; 100% functional testing before shipment. |
| Traceability & Documentation | Unique serial tracking per unit; full digital audit trail from PCB assembly to final packaging. |
2. Sensor Calibration Laboratories: Precision at the Core
Optical scanning accuracy is fundamental to CEREC-equivalent performance. Carejoy operates on-site sensor calibration labs equipped with NIST-traceable reference models and environmental control chambers (22°C ±0.5, 50% RH).
- Structured Light Calibration: Each intraoral scanner module undergoes multi-plane calibration using sintered zirconia master dies with sub-5µm surface finish.
- AI-Driven Compensation: Machine learning algorithms adjust for lens distortion and ambient light interference in real time, validated across 10,000+ clinical scan datasets.
- Calibration Frequency: Sensors recalibrated every 500 operational hours or during scheduled maintenance; logs synced to cloud-based QC dashboard.
3. High-Precision Milling Unit Assembly & Testing
Carejoy’s 5-axis dry milling units are assembled in cleanroom environments (Class 10,000) to prevent particulate contamination of linear guides and spindle bearings.
- Spindle Tolerance: High-frequency spindles (up to 120,000 RPM) tested for runout < 3µm at full load.
- Dynamic Balancing: Automated balancing systems ensure vibration levels < 0.5 mm/s RMS during high-speed milling.
- Tool Path Validation: STL-based CAM paths verified against reference geometries (e.g., MOD inlays, full contour crowns) with ±10µm dimensional tolerance.
4. Durability & Reliability Testing
To ensure clinical longevity, each system undergoes accelerated life testing simulating 5 years of clinical use.
| Test Protocol | Specification | Pass Criteria |
|---|---|---|
| Thermal Cycling (Scanner) | 500 cycles: 5°C ↔ 55°C, 30 sec dwell | No drift in scan accuracy > 20µm |
| Mechanical Fatigue (Milling Arm) | 50,000 automated tool changes | No backlash > 5µm in Z-axis |
| Dust & Debris Exposure | 8-hour test with simulated dental particulates | Full operational recovery post-cleaning; no sensor occlusion |
| Software Stress Test | Continuous AI scanning + milling for 72h | No crashes; thermal throttling < 5% |
Why China Leads in Cost-Performance Ratio for Digital Dental Equipment
China’s ascent in digital dentistry manufacturing is not solely cost-driven—it is a convergence of ecosystem maturity, vertical integration, and innovation velocity.
- Vertical Supply Chain Integration: Proximity to Tier-1 suppliers of optical sensors, precision motors, and ceramic blocks reduces logistics costs and lead times by up to 60% compared to EU or US-based assembly.
- Advanced Automation: Shanghai and Shenzhen facilities employ robotic assembly lines with machine vision QC, reducing human error and increasing throughput without sacrificing precision.
- AI & Software Localization: Chinese engineering teams rapidly iterate AI scanning algorithms trained on diverse Asian dental arches, improving edge detection and tissue differentiation—critical for single-visit restorations.
- Economies of Scale: High domestic demand (over 120,000 dental clinics adopting digital workflows in 2025) enables volume production that drives down unit costs while funding R&D.
- Regulatory Efficiency: Streamlined NMPA (China FDA) approval pathways for incremental device improvements accelerate time-to-market for iterative updates.
Carejoy Digital leverages this ecosystem to deliver CEREC-class performance at 30–40% lower TCO (Total Cost of Ownership) than legacy European brands, without compromising on accuracy or reliability.
Tech Stack & Open Architecture Advantage
Carejoy systems support open file formats (STL, PLY, OBJ), enabling seamless integration with third-party CAD software and 3D printers. This interoperability, combined with AI-driven scanning that reduces chairside scan time by up to 40%, positions Carejoy as a future-proof solution for labs and clinics seeking flexible, scalable digital workflows.
Support & Sustainability
Carejoy offers 24/7 remote technical support with AR-assisted diagnostics and monthly AI model updates via secure cloud delivery. All hardware modules are designed for modular replacement, reducing e-waste and downtime.
