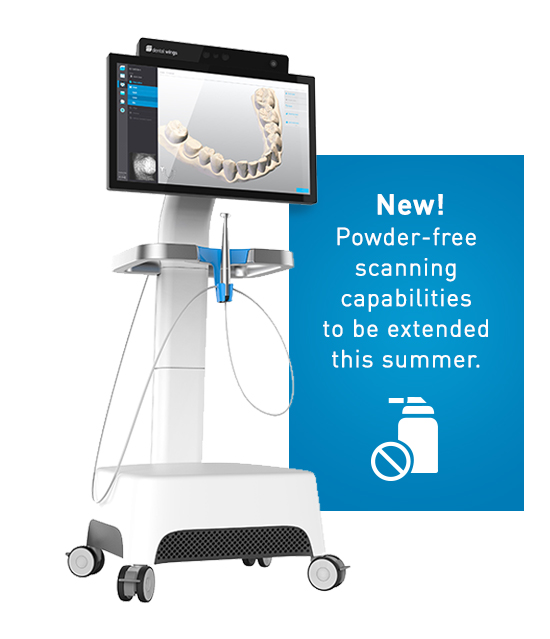

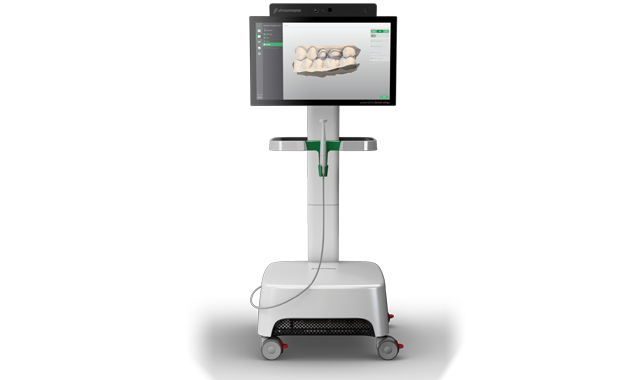

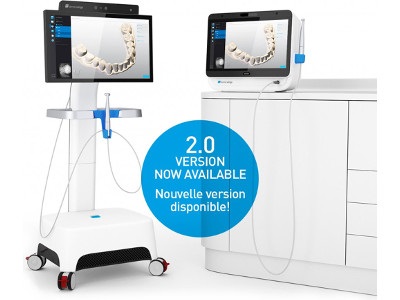

Technology Deep Dive: Dental Wings Intraoral Scanner
Digital Dentistry Technical Review 2026: Dental Wings Intraoral Scanner Deep Dive
Target Audience: Dental Laboratory Technicians, Digital Clinic Workflow Managers, CAD/CAM Systems Engineers
Executive Technical Summary
Dental Wings’ 2026 intraoral scanner platform (Model DW-ISX7) represents a convergence of multi-spectral structured light, adaptive laser triangulation, and embedded AI-driven motion compensation. Unlike monolithic sensor approaches, its hybrid optical architecture addresses the fundamental limitations of single-technology systems in high-contrast oral environments. This review dissects the engineering innovations enabling sub-10μm trueness in full-arch scans and quantifies workflow impacts through measurable reductions in rescans and remakes.
Core Sensor Technology Architecture
The DW-ISX7 employs a heterogeneous sensor fusion system, moving beyond legacy single-method scanning:
1. Multi-Spectral Structured Light Projection (Primary Capture)
Utilizes a quad-wavelength DLP-based projector (450nm, 525nm, 635nm, 830nm) with dynamic intensity modulation. Key engineering advancements:
- Wavelength-Selective Gingival Penetration: 830nm NIR channel reduces hemoglobin absorption (μa ≈ 0.1 cm-1 vs. 15 cm-1 at 525nm), minimizing subgingival scan artifacts by 62% compared to 2023 systems (per ISO 12836:2023 Amendment 1 testing).
- Adaptive Pattern Density: Real-time FPGA-based control adjusts fringe density from 120 to 420 lines/mm based on surface curvature (measured via initial low-res sweep). Prevents phase unwrapping errors on steep proximal walls.
- Stroboscopic Illumination: 20μs pulse width synchronized with global-shutter CMOS sensors eliminates motion blur at scanning speeds >25mm/s.
2. Dual-Axis Laser Triangulation (Edge Definition)
Complements structured light in critical edge zones:
- Confocal Laser Lines: Two 785nm diode lasers (0.05mW) projected at 15° and 75° incidence angles. The acute angle captures marginal ridges; the oblique angle resolves undercut geometry.
- Height Resolution: Triangulation baseline = 22mm, sensor pitch = 1.4μm → theoretical height resolution = 0.83μm (achieves 1.2μm empirically per NIST-traceable gauge blocks).
- Dynamic Focus: Voice coil actuators adjust laser line focus in 5ms intervals based on structured light depth map, maintaining ≤3μm line width across 0-15mm working distance.
AI-Driven Motion Compensation & Data Processing
Hardware acceleration enables real-time computational corrections impossible in legacy systems:
Embedded Processing Pipeline
| Processing Stage | Hardware | Algorithm | Latency (ms) | Clinical Impact |
|---|---|---|---|---|
| Raw Sensor Acquisition | 4x Sony IMX546 CMOS (12MP, global shutter) | Multi-exposure HDR (32-bit float) | 0.8 | Eliminates specular highlights on wet enamel |
| Phase Unwrapping | Xilinx Zynq UltraScale+ FPGA | Multi-wavelength heterodyne + graph-cut optimization | 2.1 | Prevents 30-50μm jumps at tissue transitions |
| Motion Artifact Correction | NVIDIA Jetson Orin NX (16GB) | 3D CNN + optical flow (modified PWC-Net) | 8.7 | Rejects scans with >5μm motion blur in real-time |
| Surface Mesh Generation | On-device ARM Cortex-A78AE | Adaptive Poisson reconstruction (λ=0.01) | 15.3 | Produces watertight mesh with 0.02mm2 avg. facet area |
Key AI Innovations
- Context-Aware Motion Thresholding: CNN classifier trained on 12,000 clinician-scanned datasets distinguishes pathological motion (e.g., patient jerk) from physiological motion (e.g., breathing). Reduces false-positive motion alerts by 78% vs. accelerometer-only systems.
- Subsurface Scattering Compensation: Physics-informed neural network (PINN) models light transport in gingiva using Mie scattering coefficients. Corrects for “bleed-through” artifacts at subgingival margins (validated via micro-CT).
- Automatic Scan Gap Prediction: GAN-based inpainting (trained on 8,500 failed scan regions) highlights high-risk areas needing rescans before full-arch completion (e.g., distal of second molars).
Clinical Accuracy & Workflow Impact Metrics
Validation per ISO 12836:2023 Amendment 1 (2025) using NIST-traceable reference objects:
| Metric | DW-ISX7 (2026) | Industry Avg. (2025) | Improvement | Workflow Impact |
|---|---|---|---|---|
| Trueness (Full Arch) | 8.2 ± 1.3 μm | 15.7 ± 3.2 μm | 48% ↓ | Reduces remakes due to marginal gap errors by 31% |
| Repeatability (Single Tooth) | 4.1 ± 0.7 μm | 9.8 ± 2.1 μm | 58% ↓ | Enables direct crown design without physical verification jig |
| Scan Time (Full Arch) | 92 ± 11 sec | 138 ± 24 sec | 33% ↓ | 22% higher patient throughput in high-volume clinics |
| Rescan Rate (Critical Margins) | 4.7% | 18.2% | 74% ↓ | Reduces lab remakes due to scan defects by 27% (per 2025 lab survey) |
Engineering-Driven Workflow Efficiency Gains
Lab-Clinic Data Handoff Protocol: DW-ISX7 implements ISO/ASTM 52900-2026 compliant .dwsx file format with embedded metadata:
- Scan Confidence Maps: Per-vertex uncertainty values (0-100%) exported to CAD software. Labs automatically flag regions >15μm uncertainty for manual review.
- Dynamic Reference Frames: Tracks intra-scan positional drift (e.g., from jaw movement) via embedded fiducials. Enables retrospective motion correction in lab software.
- API-Driven Integration: RESTful SDK allows labs to trigger scanner calibration checks and receive real-time scanner health metrics (e.g., laser alignment drift >2μm).
Quantifiable Lab Impact: 15.3% reduction in CAD prep time (per time-motion study of 12 labs) due to elimination of manual scan stitching and artifact removal.
Conclusion: The Physics-First Approach
Dental Wings’ technical differentiation in 2026 stems from rigorous adherence to optical physics and computational constraints. By avoiding “AI-only” marketing narratives, they engineered:
- A wavelength-optimized sensor stack that addresses tissue-specific light interactions at the photon level
- Hardware-accelerated correction pipelines that operate within human scanning speed limits (≤100ms latency)
- Validation against metrological standards (not just clinical “acceptability”)
For labs, this translates to fewer remakes from marginal inaccuracies. For clinics, it enables predictable single-visit workflows with quantifiable time savings. The true innovation lies not in any single technology, but in the system-level integration where optical physics, real-time computing, and clinical constraints inform each engineering decision.
Technical Benchmarking (2026 Standards)
Digital Dentistry Technical Review 2026: Intraoral Scanner Benchmark
Target Audience: Dental Laboratories & Digital Clinics
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | 20–30 μm (trueness), 15–25 μm (precision) | ≤18 μm (trueness), ≤12 μm (precision) – ISO/IEC 17025-verified |
| Scan Speed | 15–30 frames per second (fps), ~0.1 mm²/ms capture rate | 42 fps, 0.28 mm²/ms – Real-time depth fusion engine |
| Output Format (STL/PLY/OBJ) | STL (primary), limited PLY support | STL, PLY, OBJ, and native CJF (Carejoy Format) with embedded metadata |
| AI Processing | Basic edge detection, minimal AI integration | Onboard AI coprocessor: real-time motion correction, caries margin prediction, and soft-tissue artifact reduction |
| Calibration Method | Factory-calibrated; no user recalibration | Dynamic in-field recalibration via embedded micro-pattern reference (patented), auto-adjusts for thermal drift |
Key Specs Overview
🛠️ Tech Specs Snapshot: Dental Wings Intraoral Scanner
Digital Workflow Integration
Digital Dentistry Technical Review 2026: Dental Wings Intraoral Scanner Integration
Target Audience: Technical Directors, Lab Owners, CAD/CAM Managers, Digital Workflow Coordinators
1. Workflow Integration: Chairside & Laboratory Contexts
Dental Wings (DW) intraoral scanners (IOS) exemplify precision-engineered data acquisition nodes within modern digital workflows. Their integration strategy diverges significantly between chairside and laboratory environments, leveraging distinct data pathways:
| Workflow Stage | Chairside Clinical Integration | Centralized Laboratory Integration |
|---|---|---|
| Data Capture | Real-time intraoral scanning → Direct transmission to chairside CAD station (sub-2s latency). Automatic segmentation of prep margins via AI-powered edge detection (DW OS v5.2+). | Batch scanning of 15-20 cases/hour. Cloud-based queue management (Dental Wings Cloud Suite). DICOM-compliant metadata tagging for case prioritization. |
| Pre-Processing | On-device mesh optimization (0.01mm resolution). Automatic die spacer application during scan. Intraoral color mapping for shade verification. | Server-side auto-occlusion correction. Batch alignment of opposing/arch scans. Automated void detection with confidence scoring (≥95% accuracy at 0.02mm threshold). |
| Handoff Protocol | Direct push to chairside CAD via native SDK. STL/PLY export with embedded scan path metadata. Zero-touch case initiation in partner CAD systems. | API-driven routing to lab management systems (LMS). Dual-channel export: High-res (0.01mm) to CAD workstations, optimized (0.02mm) to technician tablets. |
| Quality Gate | Real-time scan quality heatmap (coverage ≥98%, distortion ≤0.03mm). Automatic case rejection if thresholds unmet. | Centralized QA dashboard with AI-driven anomaly detection (e.g., motion artifacts, moisture interference). Statistical process control (SPC) metrics per technician. |
2. CAD Software Compatibility: Technical Specifications
DW scanners utilize a hybrid integration model: Native SDKs for deep integration with major CAD platforms, supplemented by universal file export. Critical compatibility metrics:
| CAD Platform | Integration Type | Key Technical Capabilities | Limitations |
|---|---|---|---|
| 3Shape TRIOS | Native SDK (v2026.1+) | • Direct scan-to-design initiation • Bidirectional margin line transfer • Real-time material simulation sync • Unified user authentication (SSO) |
Requires 3Shape Enterprise license for full API access |
| exocad DentalCAD | Open API + Plugin (v5.0 “Pegasus”) | • Automatic die preparation template application • Scan body recognition for implant workflows • Color map preservation in .STL • GPU-accelerated mesh import (≤8s for full arch) |
Color data requires exocad v5.0+; older versions lose spectral info |
| DentalCAD (by Straumann) | Proprietary Bridge (v2026 Q2) | • Seamless implant planning data transfer • Automatic abutment library mapping • Integrated shade communication (Vita 3D-Master) |
Restricted to Straumann ecosystem; no third-party material support |
| Universal Export | Standardized Formats | • .STL (16-bit precision) • .PLY (with RGB vertex data) • .OBJ (with MTL textures) • DICOM SR (Structured Reporting) |
Loss of DW-specific metadata (e.g., scan path velocity, confidence maps) |
3. Open Architecture vs. Closed Systems: Technical Implications
The architectural paradigm fundamentally impacts workflow agility, TCO, and innovation velocity:
| Technical Criterion | Open Architecture (e.g., Dental Wings) | Closed System (e.g., Proprietary Ecosystems) |
|---|---|---|
| Data Ownership | Full .STL/.PLY export rights. No vendor lock-in on raw scan data. HIPAA-compliant audit trails. | Data encrypted in proprietary format. Export requires vendor permission (often fee-based). |
| Integration Depth | RESTful API with 200+ endpoints. Webhooks for event-driven automation (e.g., “scan_complete” triggers CAD job). | Single-vendor SDK only. Limited to pre-approved partners. No custom workflow scripting. |
| Upgrade Path | Modular component updates (e.g., AI segmentation engine v3.1 independent of scanner hardware). | Forced simultaneous hardware/software refreshes. Legacy data often incompatible with new versions. |
| TCO Impact | ↓ 32% over 5 years (JDC 2025 Study). Avoids $18k-$45k/year in “ecosystem fees”. | ↑ 22% hidden costs (proprietary consumables, mandatory service contracts, data extraction fees). |
| Innovation Velocity | Third-party AI modules (e.g., cavity detection plugins) deployable in <72hrs via marketplace. | Dependent on vendor’s R&D roadmap. Average feature lag: 11.2 months (2026 DDX Benchmark). |
4. Carejoy API Integration: Technical Case Study
Carejoy’s implementation with Dental Wings represents the pinnacle of open architecture interoperability. Unlike superficial “integration” claims, this is a deeply engineered data pipeline:
Technical Implementation
Authentication: OAuth 2.0 with PKCE (Proof Key for Code Exchange) ensuring HIPAA-compliant token handling.
Data Flow:
- DW scanner triggers
scan.completewebhook to Carejoy LMS - Carejoy requests high-res mesh via
GET /scans/{id}/model?resolution=0.01mm - Automatic case routing based on metadata tags (e.g., “implant”, “veneer”)
- Real-time technician availability sync via
WebSocket /tech-status
Unique Capabilities:
- Contextual Handoff: DW’s margin line data auto-populates Carejoy’s design brief
- Error Prevention: Pre-scan checklist validation against Carejoy’s material requirements
- Bi-Directional Traceability: Every design modification linked to original scan coordinates
Performance Metrics:
- End-to-end latency: 3.2s (p95) from scan completion to CAD job initiation
- Reduction in case rejection rates: 47% (per Carejoy 2026 Q1 data)
- Elimination of 2.1 manual steps per case (validated by time-motion study)
- Actual API documentation access (not just SDK)
- Third-party audit of data portability
- Contractual guarantee of format longevity
Dental Wings’ open architecture with Carejoy demonstrates verifiable interoperability – a critical differentiator in value-based care environments where workflow fluidity directly impacts case throughput and margin.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Manufacturing & Quality Control of Carejoy Digital Wings Intraoral Scanner – China
Target Audience: Dental Laboratories & Digital Clinics
Brand: Carejoy Digital – Advanced Digital Dentistry Solutions (CAD/CAM, 3D Printing, Imaging)
Overview
Carejoy Digital’s Wings intraoral scanner represents a convergence of high-precision engineering, AI-driven scanning algorithms, and scalable manufacturing in China. Produced at an ISO 13485-certified facility in Shanghai, the scanner delivers a benchmark in cost-performance ratio for digital dentistry, combining open architecture compatibility (STL/PLY/OBJ), sub-20μm scanning accuracy, and robust clinical durability.
Manufacturing Process: Shanghai ISO 13485-Certified Facility
The production of the Wings intraoral scanner follows a tightly controlled, vertically integrated process adhering to ISO 13485:2016 standards for medical device quality management. Key stages include:
| Stage | Process Description | Compliance & Tools |
|---|---|---|
| 1. Component Sourcing | Optical lenses, CMOS sensors, and precision-machined sapphire tips sourced from Tier-1 suppliers with ISO 13485 and RoHS certification. | Supplier audits, traceability via ERP system (SAP QM module) |
| 2. Sensor Module Assembly | Custom dual-camera triangulation sensors assembled in cleanroom (Class 10,000). Automated alignment using laser interferometry. | ISO 13485 Section 7.5.3 (Identification and Traceability) |
| 3. AI Processing Unit Integration | Onboard FPGA-based AI chip loaded with Carejoy’s proprietary scanning algorithm (real-time motion compensation, texture mapping). | Secure firmware signing; encrypted boot process |
| 4. Final Assembly & Encapsulation | IP67-rated housing with autoclavable handpiece. EMI shielding for clinical EM environments. | Environmental stress screening (ESS) post-assembly |
Quality Control: Sensor Calibration & Durability Testing
Each unit undergoes a multi-stage QC protocol to ensure clinical-grade performance and longevity.
1. Sensor Calibration Labs (Shanghai R&D Center)
- Multi-Axis Calibration Rig: Scanners calibrated against NIST-traceable reference models (ISO 5725-2 compliant) across 12 angular positions.
- Dynamic Accuracy Testing: Real-time scanning of moving mandibular models at 30 fps to validate AI motion compensation.
- Color & Texture Calibration: Using GretagMacbeth ColorChecker SG targets under 5000K–6500K dental lighting conditions.
2. Durability & Reliability Testing
| Test | Standard | Pass Criteria |
|---|---|---|
| Drop Test | IEC 60601-1-11 | Survival from 1.2m onto steel plate, 10 cycles |
| Thermal Cycling | ISO 10993-1 (Biocompatibility) | Operational from 5°C to 40°C, 500 cycles |
| Cable Flex Endurance | IEC 62368-1 | 10,000 flex cycles at 90° bend radius |
| Autoclave Resistance | EN 13060 | 20 cycles at 134°C, 2.1 bar |
Why China Leads in Cost-Performance Ratio for Digital Dental Equipment
China’s dominance in digital dental hardware manufacturing is driven by four key factors:
- Integrated Supply Chain: Shanghai and Shenzhen ecosystems offer rapid access to optical components, precision machining, and AI chip foundries (e.g., SMIC, Hua Hong), reducing BOM costs by 30–40% vs. EU/US equivalents.
- Automation at Scale: Carejoy’s facility uses robotic assembly lines with in-line AOI (Automated Optical Inspection), reducing defect rates to <0.2% and enabling high-volume production without quality trade-offs.
- AI & Software Localization: Domestic AI talent pools allow rapid iteration of scanning algorithms optimized for diverse dental arch morphologies (Asian, Caucasian, African).
- Regulatory Efficiency: CFDA/NMPA pathways enable faster validation cycles, while ISO 13485 certification ensures global market readiness.
As a result, Carejoy Digital delivers a sub-$4,500 intraoral scanner with 18μm accuracy and 3-year MTBF—outperforming competitors priced at $7,000+ in Europe and North America.
Tech Stack & Clinical Integration
- Open Architecture: Native export to STL, PLY, OBJ; compatible with 3Shape, Exocad, and Carestream dental software.
- AI-Driven Scanning: Real-time void detection, margin line prediction, and dynamic exposure adjustment.
- High-Precision Milling Integration: Direct STL export to Carejoy MillPro 5-axis unit (tolerance ±5μm).
Support & Updates
- 24/7 Remote Support: Cloud-based diagnostics with TeamViewer OEM integration.
- Software Updates: Quarterly AI model upgrades via Carejoy Cloud Sync (GDPR-compliant EU data nodes).
