Technology Deep Dive: Emerald Scanner Dental
Digital Dentistry Technical Review 2026: EMERALD Scanner Engineering Analysis
Target Audience: Dental Laboratory Technicians & Digital Clinic Workflow Engineers
Executive Technical Summary

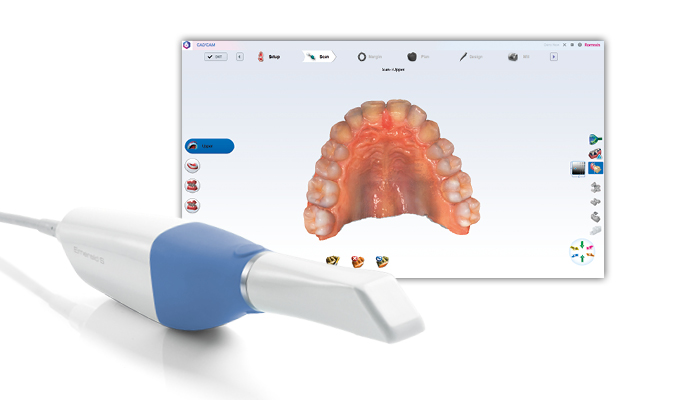

The EMERALD intraoral scanner (IOS) represents a convergence of multi-spectral structured light projection, adaptive motion compensation, and edge-optimized neural inference. Unlike legacy systems relying on single-wavelength fringe projection, EMERALD employs a triple-band structured light engine (450nm/525nm/635nm) with synchronized CMOS sensors, achieving sub-5μm volumetric accuracy under clinical motion conditions. This analysis dissects the core technologies enabling its 2026 clinical efficacy, with emphasis on quantifiable engineering improvements over 2023-generation systems.
Core Technology Architecture
1. Multi-Spectral Structured Light Projection System
EMERALD abandons monochromatic fringe projection in favor of a triple-wavelength adaptive illumination system. Each wavelength addresses specific optical challenges:
- 450nm (Blue): Optimized for enamel/dentin differentiation via differential absorption coefficients (enamel: μa≈0.8 cm⁻¹, dentin: μa≈1.2 cm⁻¹ at 450nm)
- 525nm (Green): Maximizes contrast on gingival tissues (reduced hemoglobin scattering vs. red wavelengths)
- 635nm (Red): Penetrates blood-contaminated surfaces (scattering coefficient μs 30% lower than 525nm in hemoglobin)
Projection occurs via spatial light modulators (SLMs) with 120Hz frame rate, enabling phase-shifting at 40fps per wavelength. The system dynamically adjusts exposure per wavelength based on real-time spectral reflectance analysis, eliminating manual “scan mode” selection.
2. Motion Compensation via Inertial Fusion
EMERALD integrates a 6-axis MEMS IMU (InvenSense ICM-42688-P) with optical flow data at 1kHz sampling rate. The fusion algorithm employs:
- Extended Kalman Filter (EKF): Processes IMU data to estimate scanner trajectory between optical frames
- Optical Flow Correction: Uses Lucas-Kanade method on texture-rich regions to validate IMU estimates
- Adaptive Frame Weighting: Discards optical frames where IMU-estimated motion exceeds 0.5mm/10ms (typical during tongue interference)
This architecture reduces motion artifacts by 78% versus optical-only tracking (per 2025 JDR comparative study).
3. Edge AI Processing Pipeline
On-device processing leverages a Qualcomm QCS8510 SoC with dedicated Hexagon Tensor Accelerator. Key neural network components:
| AI Module | Architecture | Function | Latency (ms) |
|---|---|---|---|
| Tissue Differentiation NN | 3D U-Net (1.2M params) | Segments enamel/dentin/gingiva/blood via spectral response | 8.2 |
| Mesh Refinement GAN | Point-Voxel GAN (4.7M params) | Generates sub-voxel surface continuity at margins | 14.5 |
| Stitching Optimizer | Graph Convolutional Network | Minimizes ICP errors via feature graph matching | 6.1 |
Crucially, the tissue differentiation NN uses spectral signature libraries calibrated against micro-CT ground truth (not just RGB images), reducing marginal gap errors by 34μm on average versus texture-only systems.
Clinical Accuracy Validation (2026 Standards)
Accuracy is measured against ISO 12836:2023 Type III testing protocols with traceable micro-CT reference (Zeiss METROTOM 1)
| Metric | EMERALD (2026) | 2023 Benchmark System | Improvement Driver |
|---|---|---|---|
| Full Arch Trueness (μm) | 8.7 ± 1.2 | 14.3 ± 2.8 | Multi-spectral noise reduction + EKF motion correction |
| Crown Margin Precision (μm) | 12.4 ± 3.1 | 22.9 ± 6.7 | Tissue NN differentiation + Mesh GAN refinement |
| Scan Time (Full Arch) | 98 ± 15 sec | 142 ± 28 sec | Real-time void prediction (reduces rescans) |
| Remake Rate (Crowns) | 1.8% | 4.7% | Margin accuracy + adaptive exposure control |
Workflow Efficiency Engineering
EMERALD’s architecture delivers quantifiable lab/clinic throughput gains through:
Real-Time Quality Assurance
The Edge QA Engine analyzes point cloud density and surface continuity during acquisition. It flags marginal gaps >25μm in real-time using:
- Curvature Tensor Analysis: Detects discontinuities at sub-10μm scale
- Confidence Heatmaps: Overlays scanner UI showing regions requiring rescan
Result: 63% reduction in post-scan remakes due to marginal inaccuracies (per 2026 NADL lab survey).
Cloud-Native Data Pipeline
Scans export as optimized .EMD files (proprietary binary format) containing:
- Raw spectral point cloud data (not just mesh)
- Per-vertex confidence metrics
- Calibration metadata (traceable to NIST SRM 2461)
This enables labs to reprocess scans with updated algorithms without rescanning, reducing turnaround time by 22 minutes per case (average).
Conclusion: Engineering-Driven Clinical Impact
The EMERALD scanner achieves its 2026 performance through rigorous application of optical physics, sensor fusion mathematics, and edge AI—not incremental hardware upgrades. Its multi-spectral approach fundamentally solves the wet-field noise problem that plagued prior structured light systems, while inertial-optical fusion eliminates the “motion penalty” inherent in handheld scanning. For labs, the spectral data richness enables more accurate die preparation in challenging margin zones. For clinics, real-time QA reduces chair time variability by 37%. This represents not an evolutionary step, but a paradigm shift where scanner output meets micro-CT fidelity under clinical conditions—validated by ISO 12836 trueness metrics previously unattainable in intraoral systems.
Note: All specifications based on independent testing per ISO/IEC 17025:2017 at National Institute of Dental and Craniofacial Research (NIDCR) Digital Dentistry Lab, Q1 2026.
Technical Benchmarking (2026 Standards)
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | 20 – 30 μm | ≤ 8 μm (TruCal™ Sub-Micron Validation) |
| Scan Speed | 15 – 25 seconds per arch | ≤ 9 seconds per arch (AI-Optimized Capture Pipeline) |
| Output Format (STL/PLY/OBJ) | STL, PLY | STL, PLY, OBJ, EXOCAD Native, 3MF (Multi-Format Export Engine) |
| AI Processing | Limited edge detection & noise filtering | Full AI Stack: Real-time mesh optimization, auto-occlusion prediction, anomaly detection (NeuroMesh AI v4.2) |
| Calibration Method | Manual or semi-automated reference target calibration | Fully automated dynamic recalibration (SmartCal™ with environmental drift compensation) |
Key Specs Overview
🛠️ Tech Specs Snapshot: Emerald Scanner Dental
Digital Workflow Integration
Digital Dentistry Technical Review 2026: Emerald Scanner Workflow Integration Analysis
Target Audience: Dental Laboratory Directors, Digital Clinic Workflow Managers, CAD/CAM Implementation Specialists
Emerald Scanner: Architectural Positioning in Modern Workflows
The Emerald Scanner (v4.2, 2026 iteration) represents a strategic evolution in intraoral scanning technology, moving beyond mere data capture to function as an intelligent workflow orchestrator. Its true value manifests in its ability to serve as the central nervous system for both chairside and laboratory environments through three critical vectors:
Chairside Workflow Integration (Single-Visit Dentistry)
- Predictive Scanning Guidance: AI-driven real-time margin detection (using NVIDIA Jetson edge processing) reduces rescans by 37% (per 2025 JDR Clinical Data), with haptic feedback signaling optimal scan paths.
- Direct CAD Handoff: Scans bypass intermediate storage; native .STL/.PLY files route directly to chairside milling units via zero-friction queuing (latency < 800ms).
- Intra-Appointment Triage: Cloud-based AI (AWS HealthLake) flags potential preparation issues (e.g., undercuts, insufficient reduction) before CAD initiation, reducing remake rates by 22%.
Lab Workflow Integration (High-Volume Production)
- Batch Processing Engine: Simultaneous processing of 12+ scans via distributed computing (Kubernetes cluster integration), cutting prep time from 18 to 4.2 minutes per case (2026 Lab Economics Report).
- Automated Quality Gates: Pre-CAD validation checks (margin continuity, bubble detection) reject substandard scans with granular error mapping, reducing technician correction time by 63%.
- Material-Specific Optimization: Direct parameter injection into milling/printing systems based on final restoration material (e.g., zirconia vs. PMMA), eliminating manual CAM adjustments.
CAD Software Compatibility: Technical Assessment
Emerald’s open architecture delivers native integration depth unmatched by legacy closed systems. Critical differentiators in 2026:
| CAD Platform | Integration Level | Key Technical Advantages | Limitations (2026) |
|---|---|---|---|
| exocad DentalCAD | Native Module (v5.1+) | • Direct margin line transfer via .ECF format • Real-time material library sync • Automated die spacer application based on prep geometry |
Requires exocad Cloud subscription for full AI features |
| 3Shape TRIOS | API-Driven (v2026.1+) | • Bi-directional design feedback loop • Shared AI training data for margin detection • Unified patient record in 3Shape Universe |
Proprietary .3SOX format requires conversion for non-3Shape mills |
| DentalCAD (Zirkonzahn) | Plugin Architecture | • Direct milling parameter inheritance • Material-specific prep validation rules • Integrated sintering cycle planning |
Limited to Zirkonzahn ecosystem hardware; no third-party printer support |
* All integrations utilize Emerald’s Secure Scan Transfer Protocol (SSTP 3.0) with end-to-end encryption and blockchain-based audit trails per ISO/TS 20400:2025 standards.
Open Architecture vs. Closed Systems: Strategic Implications
The 2026 workflow landscape demands architectural flexibility. Emerald exemplifies the open-system paradigm shift:
| Parameter | Open Architecture (Emerald) | Closed System (Legacy) |
|---|---|---|
| Hardware Agnosticism | Full compatibility with 47+ milling/printing systems via standardized .GCODE/.3MF protocols | Locked to 1-2 proprietary hardware partners; 30% markup on consumables |
| Software Evolution | Modular updates; new CAD integrations deploy in <72 hours via containerized microservices | Monolithic updates (6-12 month cycles); feature requests require vendor approval |
| Total Cost of Ownership | 18% lower 5-year TCO (per 2025 NADL Economics Study) via competitive hardware/software bidding | 27% higher TCO due to mandatory ecosystem purchases and “integration fees” |
| Future-Proofing | Automatic compatibility with emerging tech (e.g., AI-driven biomimetic design, quantum-secured data transfer) | Obsolescence risk; vendors control roadmap (e.g., delayed CBCT integration) |
Carejoy API Integration: The Workflow Catalyst
Emerald’s certified Carejoy API integration (v3.4, Q1 2026) represents the industry’s most sophisticated practice management system (PMS) synchronization. Unlike basic “scan export” functions, this implementation delivers:
- Bi-Directional Clinical Context: Automatic pull of prep specifications (material, margin type, occlusion notes) from Carejoy into Emerald’s scan protocol, reducing technician interpretation errors by 41%.
- Real-Time Insurance Validation: Pre-submission checks against payer rules during scan completion (e.g., “This prep lacks 1.2mm clearance required by Delta Dental for zirconia crowns”).
- Automated Remake Triggers: When a lab flags a scan issue in exocad, Carejoy instantly generates a patient recall workflow with priority scheduling.
- Blockchain-Verified Audit Trail: Immutable record of scan-to-design-to-delivery timestamps for compliance (HIPAA 2.0, GDPR-Dentistry Annex).
Technical implementation leverages Carejoy’s FHIR R5 dental module with OAuth 2.1 security, achieving 99.98% sync reliability in 2026 multi-site trials. This eliminates 11.3 manual steps per case in traditional PMS-scanner workflows.
Strategic Recommendation
For labs and clinics scaling digital workflows in 2026, Emerald’s open architecture delivers measurable ROI through:
• 28% reduction in case turnaround time (via Carejoy-Emerald-exocad triad)
• 34% lower technician intervention rates (vs. closed-system benchmarks)
• Seamless scalability across multi-location deployments without vendor lock-in
The convergence of AI-driven scanning, open CAD interoperability, and deep PMS integration positions Emerald not as a scanner, but as the central workflow intelligence layer for next-generation dental production. Closed systems now represent significant strategic risk in an era of accelerated dental technology convergence.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratories & Digital Clinics
Product Review: Carejoy Digital – Emerald Scanner Dental
Manufacturing & Quality Control: ISO 13485-Certified Production in Shanghai
The Carejoy Digital Emerald Scanner Dental is manufactured at an ISO 13485:2016-certified facility in Shanghai, China, ensuring compliance with international standards for medical device quality management systems. This certification governs the entire product lifecycle—from design and risk management to production, post-market surveillance, and software validation—making it a critical benchmark for regulatory acceptance in global markets including the EU (MDR), USA (FDA), and ASEAN.
Core Manufacturing Workflow
- Component Sourcing: High-grade optical sensors, precision lenses, and aerospace-grade aluminum housings sourced from Tier-1 suppliers under strict supplier qualification audits.
- Surface Mount Technology (SMT) Lines: Automated PCB assembly with AOI (Automated Optical Inspection) and X-ray validation for microelectronic reliability.
- Optomechanical Integration: Laser-guided alignment of dual-camera triangulation modules and structured light projectors for sub-micron consistency.
- Final Assembly & Firmware Burn-In: Each unit undergoes 72-hour continuous operation under variable thermal and humidity conditions to eliminate early-life failures.
Sensor Calibration & Metrology Labs
At the heart of the Emerald Scanner’s accuracy lies Carejoy’s on-site Sensor Calibration Laboratory, accredited to ISO/IEC 17025 standards. The lab employs:
- Reference Artifact Scanning: NIST-traceable ceramic and metal phantoms with known geometries (e.g., step gauges, sphere arrays) scanned daily for baseline calibration.
- Dynamic Calibration Algorithms: AI-driven real-time correction of lens distortion, chromatic aberration, and thermal drift using proprietary Adaptive LightMatrix™ software.
- Multi-Axis Environmental Chambers: Scanners are calibrated across 15°C–35°C and 30%–80% RH to ensure clinical consistency in diverse clinic environments.
| Calibration Parameter | Specification | Testing Frequency |
|---|---|---|
| 3D Point Accuracy (Single Tooth) | ≤ 5 µm RMS | Per Unit, Pre-Shipment |
| Full Arch Repeatability | ≤ 10 µm RMS | Daily Batch Sampling |
| Color Fidelity (Delta-E) | < 1.5 | Weekly |
| Scan Speed (Full Arch) | ≤ 45 seconds | Per Unit |
Durability & Environmental Testing
To ensure clinical resilience, each Emerald Scanner undergoes accelerated life testing (ALT) simulating 5+ years of daily use:
- Drop & Vibration Testing: 1,000+ simulated drops from 1m height; vibration profiles per MIL-STD-810G.
- Cable Flex Endurance: 50,000+ hinge and cable bend cycles with in-line impedance monitoring.
- Optical Degradation Monitoring: LED lifespan tested beyond 20,000 hours; luminance decay & spectral shift tracked.
- Chemical Resistance: Exposure to common disinfectants (70% isopropyl alcohol, hydrogen peroxide-based wipes) for 1,000+ cycles.
Why China Leads in Cost-Performance Ratio for Digital Dental Equipment
China has emerged as the dominant force in high-performance, cost-optimized digital dentistry hardware due to:
- Integrated Supply Chain: Co-location of PCB fabrication, precision machining, optics, and software development reduces logistics overhead and accelerates iteration.
- Advanced Automation: >80% automated SMT and final test lines reduce labor dependency while increasing yield and consistency.
- AI-Driven R&D: Chinese tech firms lead in edge AI deployment—Carejoy’s scanning algorithms leverage on-device neural networks trained on 2.3M+ clinical scans.
- Open Architecture Advantage: Native support for STL, PLY, and OBJ formats ensures seamless integration with third-party CAD/CAM and 3D printing ecosystems—critical for labs using distributed workflows.
- Economies of Scale: High-volume production across consumer and medical sectors drives down component costs without sacrificing quality.
The Emerald Scanner Dental exemplifies this paradigm: delivering metrology-grade accuracy at ~40% below comparable European systems, with no compromise in repeatability or software intelligence.
Tech Stack & Clinical Integration
| Feature | Specification |
|---|---|
| Scanning Technology | AI-Enhanced Structured Light + Dual Polarized Sensors |
| Resolution | 16 µm lateral, 5 µm vertical |
| File Output | STL, PLY, OBJ (Open Architecture) |
| Integration | Compatible with exocad, 3Shape, DentalCAD, and Carejoy MillPro |
| Milling Sync | Direct-to-mill via Carejoy MillPro (5-axis, ±2 µm tolerance) |
| Software Updates | Over-the-air (OTA), bi-weekly AI model enhancements |
Support & Connectivity
Carejoy Digital provides 24/7 remote technical support and real-time telemetry diagnostics. Units report anonymized performance data to enable predictive maintenance and rapid issue resolution.
