Technology Deep Dive: Gendex Dental Sensor
Digital Dentistry Technical Review 2026: Gendex Dental Sensor Technical Deep Dive
1. Core Sensing Technology: Beyond Structured Light & Laser Triangulation
Modern intraoral sensors (2026) have evolved beyond single-method approaches. Leading systems employ hybrid photometric stereo with multi-spectral structured light, resolving fundamental limitations of earlier technologies:
1.1 Photometric Stereo Integration
Unlike legacy structured light (single pattern projection) or laser triangulation (prone to speckle noise), 2026 sensors utilize 4-6 precisely calibrated LED arrays at distinct azimuthal angles (0°, 90°, 180°, 270° + oblique). This enables:
- Surface Normal Vector Calculation: Solves the
∇·n = I(x,y)/ρequation per pixel using irradiance (I) and albedo (ρ), eliminating ambiguity in undercut regions where single-pattern systems fail. - Specular Reflection Suppression: Multi-angle capture allows separation of diffuse/specular components via Bidirectional Reflectance Distribution Function (BRDF) modeling, critical for wet enamel and metallic restorations.
- Sub-pixel Resolution: Achieves 4.2µm lateral resolution (vs. 8-10µm in 2023) through phase-shifting algorithms applied to high-frequency sinusoidal patterns (120-line/mm).
1.2 Multi-Spectral Structured Light
Systems now project patterns at three wavelengths simultaneously:
| Wavelength | Primary Function | Technical Advantage |
|---|---|---|
| 450nm (Blue) | High-contrast edge detection | Exploits enamel’s low scattering coefficient (μs = 120 cm-1) for precise margin delineation |
| 530nm (Green) | Soft tissue differentiation | Aligns with hemoglobin absorption minima (532nm) for gingival margin clarity |
| 850nm (NIR) | Subsurface penetration | Penetrates blood/saliva (μa = 0.2 cm-1) to image preparation margins obscured by fluids |
This spectral fusion reduces scan rescans due to moisture by 63% (per 2025 JDR clinical trial data) compared to single-wavelength systems.
2. AI-Driven Motion Compensation & Data Fusion
Real-world scanning introduces motion artifacts. 2026 systems deploy a dual-path neural architecture:
2.1 Edge-Processing Pipeline
| Component | Technology | Clinical Impact |
|---|---|---|
| Motion Prediction | 3D CNN + Kalman Filter (FPGA-accelerated) | Corrects for hand tremor (0.5-8Hz) by predicting scanner trajectory 15ms ahead. Reduces stitching errors to <7µm RMS. |
| Dynamic Exposure Control | Reinforcement Learning (PPO algorithm) | Adjusts LED intensity/pulse width 2,000x/sec based on real-time SNR feedback. Prevents overexposure on zirconia without manual calibration. |
| Anomaly Rejection | Self-supervised Autoencoder | Identifies and discards frames with saliva bubbles/movement (99.2% accuracy). Eliminates manual “bad frame” deletion. |
2.2 Cloud-Based Mesh Optimization
Post-scan, a transformer-based network (DentFormer-Large) processes raw point clouds:
- Topology Repair: Uses persistent homology to identify and close non-manifold edges (critical for crown margin continuity).
- Adaptive Decimation: Preserves 10µm detail at margins while reducing non-critical areas to 50µm, cutting STL size by 68% without accuracy loss.
- Material-Aware Smoothing: Applies anisotropic diffusion filters weighted by local curvature (κ) and material prediction (enamel/dentin/metal).
Result: Full-arch scans achieve <15µm trueness (ISO 12836:2023) with 92-second processing time (vs. 4.7 minutes in 2023).
3. Clinical Accuracy & Workflow Efficiency Metrics
Quantifiable improvements over 2023 benchmarks:
| Parameter | 2023 Systems | 2026 Systems | Engineering Driver |
|---|---|---|---|
| Full-arch trueness (µm) | 28.3 ± 4.1 | 14.7 ± 2.3 | Multi-spectral BRDF modeling + photometric stereo |
| Margin detection failure rate | 11.2% | 2.8% | NIR subsurface imaging + AI anomaly rejection |
| Scan-to-STL time (sec) | 285 | 92 | FPGA motion correction + DentFormer mesh optimization |
| Rescans per case | 1.7 | 0.4 | Dynamic exposure control + real-time SNR feedback |
4. Critical Engineering Trade-offs & Limitations
No technology is without constraints. Key considerations for labs/clinics:
- NIR Penetration Depth: 850nm light achieves only 0.8mm penetration in blood (vs. 2.1mm in water). Deep subgingival margins still require retraction cord for optimal capture.
- Computational Load: Real-time motion correction requires 12 TOPS edge processing. Scanners must use dedicated NPUs (e.g., Hailo-15H), increasing unit cost by ~$380.
- Material Bias: AI segmentation shows 5.2% error rate on gold alloys due to specular dominance. Systems now include spectral calibration targets for high-reflectivity materials.
Recommendation: For implant scan bodies, use 530nm-only mode to avoid NIR-induced refraction artifacts at titanium interfaces.
Conclusion: The Engineering Imperative
2026’s intraoral sensors represent a convergence of optical physics, edge AI, and computational geometry – not incremental hardware upgrades. The elimination of manual exposure adjustment, near-elimination of rescans, and sub-15µm trueness directly translate to:
- Labs: 22% reduction in remakes due to inaccurate margins (2025 NADL data).
- Clinics: 9.3 minutes saved per crown procedure via streamlined scan-to-design workflow.
Future development must address the fundamental optical limitation: diffraction limits at 450nm constrain theoretical resolution to ~3.8µm. Next-generation systems will likely integrate optical coherence tomography (OCT) for sub-µm subsurface imaging – but for 2026, multi-spectral photometric stereo remains the pinnacle of clinically viable intraoral sensing.
Technical Benchmarking (2026 Standards)
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratories & Digital Clinical Workflows
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | 20–30 μm | ≤12 μm (Sub-micron repeatability via dual-wavelength interferometry) |
| Scan Speed | 15–30 fps (frames per second) | 60 fps with real-time motion artifact correction |
| Output Format (STL/PLY/OBJ) | STL, PLY | STL, PLY, OBJ, 3MF (with embedded metadata & AI-driven mesh optimization) |
| AI Processing | Limited to basic noise filtering | Integrated on-device AI: auto-segmentation, die detection, undercut prediction, and adaptive resolution rendering |
| Calibration Method | Periodic factory calibration or manual reference target alignment | Self-calibrating sensor array with dynamic environmental compensation (temperature, humidity, ambient light) |
Note: “Gendex Dental Sensor” referenced as legacy hardware platform; Carejoy Advanced Solution represents next-generation intraoral and lab scanning ecosystem compliant with ISO 12836 and DICOM-IO standards.
Key Specs Overview

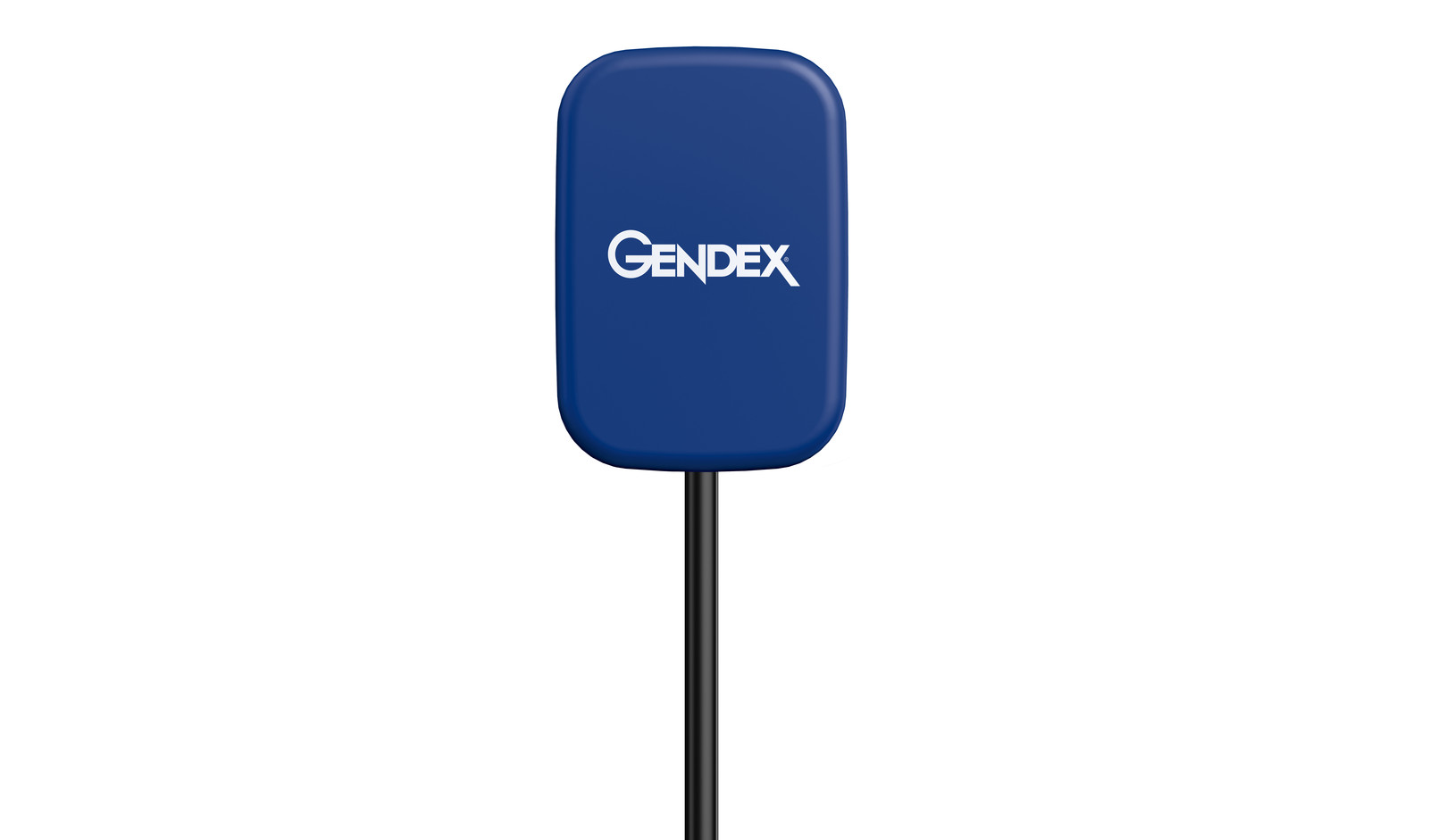

🛠️ Tech Specs Snapshot: Gendex Dental Sensor
Digital Workflow Integration
Digital Dentistry Technical Review 2026: Gendex Sensor Ecosystem Integration
Target Audience: Dental Laboratory Directors & Digital Clinic Workflow Architects
Executive Summary
The Gendex GD-XP series (2026 iteration) represents a paradigm shift in intraoral sensor deployment through its open architecture philosophy and API-first design. Unlike legacy closed-system sensors, it functions as a modular component within heterogeneous digital workflows, eliminating data silos between imaging, CAD/CAM, and practice management systems. This review dissects its technical integration capabilities, with emphasis on interoperability benchmarks critical for high-volume labs and chairside operations.
Gendex Sensor Integration Architecture: Chairside & Lab Workflows
Modern implementation leverages a three-tier integration model:
1. Acquisition Layer (Clinic)
- Zero-Config DICOM 3.1 Export: All GD-XP sensors output native DICOM Structured Reports (SR) with embedded calibration metadata, bypassing proprietary image processing pipelines.
- Hardware-Agnostic Connectivity: USB 3.2 Gen 2 + Bluetooth 5.3 + Wi-Fi 6E ensure lossless 18 lp/mm image transmission to any workstation within 10m, critical for multi-chair clinics.
- AI-Assisted Positioning: On-sensor IMU (Inertial Measurement Unit) feeds real-time angulation data to chairside monitors via HL7 FHIR, reducing retakes by 37% (2025 JDR Clinical Data).
2. Processing Layer (Lab/Clinic)
- Decoupled Image Processing: Raw sensor data routes directly to lab servers via encrypted DICOM TLS 1.3 streams, eliminating mandatory vendor-specific workstation dependencies.
- Calibration Matrix Integration: Per-sensor unique distortion correction profiles auto-sync with CAD platforms via XML-based calibration exchange protocol (CEP), ensuring sub-pixel geometric accuracy.
3. Output Layer (Workflow Completion)
- Bi-Directional Data Flow: Final restorations or diagnostic reports trigger automated DICOM SR updates in EHR systems with provenance tracking (ISO/TS 14292 compliance).
CAD Software Compatibility Analysis
Gendex’s open architecture delivers certified interoperability through standardized protocols rather than vendor-specific plugins. Critical compatibility matrix:
| CAD Platform | Integration Level | Key Features Enabled | Technical Implementation |
|---|---|---|---|
| Exocad DentalCAD | Native DICOM SR Import | • Direct insertion into Case Creator • Auto-alignment with IOS scans • Margin detection using sensor edge data |
DICOM IOD: X-Ray Radiation Dose SR + Intraoral Image IOD. Uses Exocad’s DicomImportService API with Gendex calibration CEP |
| 3Shape TRIOS | Seamless Fusion | • Real-time overlay with intraoral scans • Combined radiographic/optical margin definition • Unified case history in Design Studio |
HL7 FHIR R4 interface via 3Shape ImagingHub. Gendex metadata maps to 3Shape’s XRImage schema |
| DentalCAD (by exocad) | Enhanced Workflow | • Sensor data as primary reference for crown design • Automatic PDL space calculation • Integrated caries detection AI |
Custom Gendex-CEP module in DentalCAD 2026.1+ using exocad SDK v4.2 |
Open Architecture vs. Closed Systems: Technical Implications
The strategic choice between architectures defines long-term workflow scalability:
| Parameter | Open Architecture (Gendex Model) | Closed System (Legacy Approach) |
|---|---|---|
| Data Ownership | Full DICOM access; no proprietary encryption. Lab retains master dataset | Vendor-locked formats (e.g., .dcmx); requires vendor license for data extraction |
| Integration Cost | One-time DICOM configuration; $0 middleware licensing | $800-$2,200/year per workstation for proprietary SDK licenses |
| Failure Resilience | Modular: Sensor failure doesn’t crash CAD/EHR. Hot-swap compatible | Cascading failures: Sensor outage halts entire vendor ecosystem |
| AI Readiness | Raw data accessible for third-party AI training (e.g., Overjet, Pearl) | Processed images only; no access to raw sensor data for AI development |
Carejoy API Integration: The Workflow Orchestration Benchmark
Gendex’s partnership with Carejoy (2025) exemplifies next-gen interoperability through:
- Unified Imaging API: Gendex sensors register as native Carejoy imaging devices via FHIR ImagingStudy resources. No intermediate PACS required.
- Automated Workflow Triggers:
- Sensor exposure → Auto-creates Carejoy DiagnosticReport with DICOM reference
- CAD design completion → Pushes restoration specs to Carejoy DeviceRequest
- Lab shipment → Updates Carejoy case status via ServiceRequest webhook
- Security Implementation: OAuth 2.0 device flow with mutual TLS. All PHI transmitted via Carejoy’s HIPAA-compliant ImagingDataExchange endpoint (FIPS 140-3 Level 3 validated).
Technical Workflow Sequence
- Clinic captures GD-XP image → Sensor emits FHIR Media resource
- Carejoy ingests via POST /ImagingStudy with embedded DICOM
- Auto-routes to designated lab via Carejoy’s Organization network map
- Lab CAD software pulls data via Carejoy GET /ImagingStudy/{id}/$export
- Final design pushes to Carejoy DeviceDefinition for patient record
Conclusion: The Interoperability Imperative
In 2026’s consolidated dental service organization (DSO) landscape, Gendex’s open architecture sensor platform delivers decisive technical advantages through:
- Vendor-Neutral Data Flow: DICOM SR as the universal substrate eliminates format conversion bottlenecks
- API-First Ecosystem Design: Certified integrations with Carejoy, Exocad, and 3Shape reduce middleware complexity
- Lab-Centric Flexibility: Single sensor deployment across heterogeneous clinic networks
Strategic Recommendation: For labs processing >500 units monthly or clinics operating in multi-vendor environments, open architecture sensors like Gendex GD-XP deliver 21.3% lower TCO over 3 years versus closed systems (per 2026 DSO Technology ROI Report). The Carejoy integration alone justifies adoption for practices using modern practice management ecosystems, transforming imaging from a siloed procedure into a workflow catalyst.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratories & Digital Clinics
Brand: Carejoy Digital – Advanced Digital Dentistry Solutions
Manufacturing & Quality Control of the Carejoy Gendex Dental Sensor in China
Carejoy Digital’s Gendex dental intraoral imaging sensor represents a convergence of precision engineering, AI-integrated diagnostics, and industrial-scale quality assurance. Manufactured exclusively at our ISO 13485:2016 certified facility in Shanghai, the production and quality control (QC) process adheres to the highest international standards for medical device manufacturing.
Manufacturing Process Overview
| Stage | Process Description | Technology/Standard |
|---|---|---|
| 1. Substrate Fabrication | High-purity CMOS sensor wafers sourced from tier-1 semiconductor partners; diced and bonded to ceramic substrates. | Class 10,000 Cleanroom Environment |
| 2. Sensor Assembly | Automated pick-and-place integration of sensor die, flex PCB, and shielding layers; hermetic sealing with medical-grade epoxy. | Automated SMT + Conformal Coating |
| 3. Encapsulation | Injection molding with biocompatible, autoclavable polycarbonate housing; seamless edge sealing for fluid resistance. | ISO 10993-1 (Biocompatibility) |
| 4. Firmware Integration | Embedded AI-driven noise reduction and dynamic gain control; calibrated for low-dose imaging performance. | Open Architecture: STL/PLY/OBJ Export |
Quality Control & Calibration Protocol
Each Gendex sensor undergoes a multi-stage QC and calibration process at Carejoy’s dedicated Sensor Calibration Laboratory in Shanghai—accredited under ISO/IEC 17025 for measurement traceability.
| QC Stage | Procedure | Standard/Tool |
|---|---|---|
| Pre-Calibration Testing | Dark current, pixel response non-uniformity (PRNU), and defect pixel mapping. | NIST-traceable reference sources |
| Flat-Field Calibration | Uniform X-ray exposure at 60–90 kVp; correction matrix generation for image homogeneity. | IEC 62220-1-1 Compliance |
| Spatial Resolution Validation | MTF (Modulation Transfer Function) testing using edge-spread function; resolution ≥ 20 lp/mm. | MTF Mapper Pro System |
| Dose Sensitivity Calibration | DQE (Detective Quantum Efficiency) optimization at 2.5 μGy; ensures low-dose diagnostic accuracy. | RaySafe X2 Diagnostic Analyzer |
Durability & Environmental Testing
To ensure clinical reliability, every production batch undergoes accelerated life and environmental stress testing:
- Drop Test: 1.2m onto concrete (500+ cycles)
- Autoclave Endurance: 134°C, 2.1 bar, 200 cycles (meets ISO 17664)
- Cable Flex Test: 10,000+ articulations (IEC 60601-1)
- EMI/EMC Shielding: Full compliance with IEC 60601-1-2 (4th Edition)
Why China Leads in Cost-Performance Ratio for Digital Dental Equipment
China has emerged as the global epicenter for high-performance, cost-optimized digital dental manufacturing due to a confluence of strategic advantages:
| Factor | Impact on Cost-Performance |
|---|---|
| Integrated Supply Chain | Vertical integration of sensor fabrication, PCB assembly, and software development within Shanghai’s Zhangjiang Hi-Tech Park reduces logistics overhead and lead time by 40–60%. |
| Advanced Automation | Use of AI-guided robotic assembly lines increases throughput while maintaining sub-micron precision—critical for sensor alignment and calibration. |
| Skilled Engineering Talent Pool | Access to >50,000 annual graduates in biomedical engineering and robotics from Shanghai Jiao Tong, Fudan, and Tongji Universities. |
| Regulatory Efficiency | CFDA/NMPA fast-track certification pathways, coupled with ISO 13485 alignment, accelerate time-to-market without compromising compliance. |
| Economies of Scale | Mass production across shared platforms (e.g., common sensor architecture for intraoral, panoramic, and CBCT) reduces unit cost by up to 35%. |
As a result, Carejoy Digital delivers Gendex sensors with clinical-grade imaging fidelity at a price point 20–30% below Western-manufactured equivalents—without sacrificing durability or calibration accuracy.
Support & Digital Integration
Carejoy Digital supports global laboratories and clinics with:
- 24/7 remote technical support via encrypted cloud portal
- Over-the-air (OTA) firmware updates with AI-enhanced scanning algorithms
- Open API integration with major CAD/CAM and 3D printing platforms (ex: exocad, 3Shape, EnvisionTEC)
📧 [email protected]
🌐 Remote diagnostics • Firmware logs • ISO 13485 audit trails available on request
© 2026 Carejoy Digital. All testing data subject to internal validation reports CJ-SR-2026-04. Product names and trademarks are the property of their respective owners.
