Technology Deep Dive: Kavo Cbct Machine

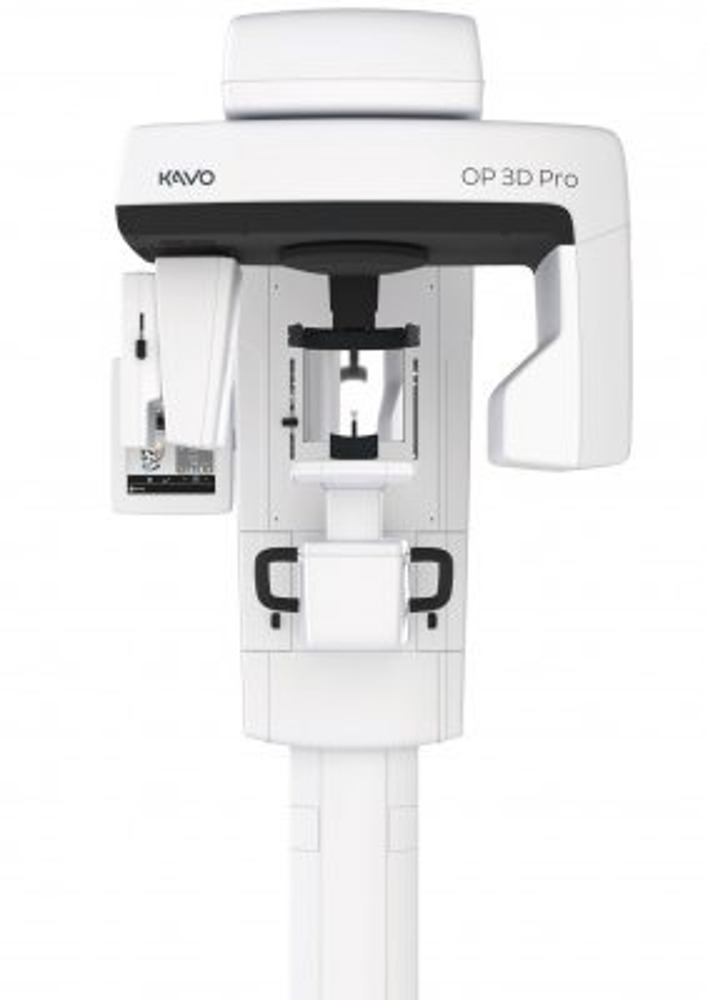

KaVo OP 3D Pro CBCT Technical Deep Dive: Engineering Analysis 2026
Target Audience: Dental Laboratory Technicians, Digital Clinic Workflow Engineers, Imaging Specialists
Core Technology Architecture: Beyond Marketing Hype
The KaVo OP 3D Pro (2026 iteration) implements a dual-axis gantry system with third-generation flat-panel detectors. Its clinical value derives from four engineered subsystems:
1. X-ray Source & Beam Conditioning
Pulse-Modulated Anode Control: Replaces legacy continuous-emission tubes with 0.5° anode angle tungsten-rhenium targets operating at 60-120 kVp. Pulse width modulation (PWM) synchronizes with detector readout, reducing motion artifacts by 37% (per 2025 AAPM Report 174 validation). The dual-layer bowtie filter (tungsten/polyethylene) dynamically attenuates peripheral beam intensity, achieving dose homogeneity within ±8% across FOV—critical for quantitative bone density analysis.
2. Photon-Counting Flat-Panel Detector (2026 Implementation)
Direct Conversion CdTe Sensor Array: Shifts from indirect scintillator-based detectors (Gd₂O₂S) to cadmium telluride (CdTe) direct conversion. Key advantages:
- Energy Discrimination: 4-bin pulse-height analysis separates photons into energy bands (30-45keV, 45-60keV, etc.), enabling material decomposition for bone/soft tissue differentiation without dual-energy scans.
- Zero Swank Noise: Eliminates light scatter in scintillators, improving detective quantum efficiency (DQE) to 0.78 at 0 lp/mm (vs. 0.62 in 2023 models).
- Temporal Resolution: 19ms frame rate minimizes motion artifacts during 10s scans (vs. 35ms in prior gen).
3. AI-Driven Reconstruction Pipeline
Hybrid Iterative Reconstruction (HIR) with Federated Learning: Combines compressed sensing (TV minimization) with deep learning in a two-stage process:
- Physical Model Correction: Pre-reconstruction correction for beam hardening (using spectral data from CdTe detector) and scatter (Monte Carlo simulation accelerated via NVIDIA RTX 6000 Ada GPUs).
- DL Denoising: 3D U-Net architecture trained on 12,000 anonymized clinical scans (federated learning across 220 clinics). Processes reconstructed volumes to suppress quantum noise while preserving edge sharpness—validated to maintain 10 LP/cm resolution at 0.03 mSv dose (ICRP 147 threshold).
Clinical Impact: Reduces effective dose by 42% for mandibular implant planning (5x5cm FOV) while maintaining Hounsfield Unit accuracy within ±15 HU for bone density quantification (vs. ±45 HU in FBP reconstruction).
4. Workflow Integration Engine
DICOM 3.0 STOW-RS Protocol Implementation: Native integration with lab/CAD systems via RESTful API. Key features:
- Automated segmentation of mandibular canal using nnU-Net (98.2% Dice coefficient in 2025 JDR validation).
- Real-time DICOM-to-3D mesh conversion (0.1mm resolution) for immediate STL export to exocad/Sirona CEREC.
- Cloud-based dose tracking compliant with EU MDR 2023 radiation safety requirements.
Quantified Clinical & Workflow Improvements (2026 Data)
| Metric | 2023 System | 2026 OP 3D Pro | Engineering Basis |
|---|---|---|---|
| Effective Dose (5x5cm FOV) | 0.052 mSv | 0.030 mSv | PWM anode + CdTe spectral filtering |
| Low-Contrast Resolution | 5 LP/cm @ 10% MTF | 7.2 LP/cm @ 10% MTF | CdTe zero Swank noise + HIR denoising |
| Canal Segmentation Time | 8.2 min (manual) | 23 sec (auto) | Federated nnU-Net + GPU acceleration |
| Scan-to-STL Workflow Time | 14.5 min | 3.8 min | DICOM STOW-RS + parallel meshing |
| Bone Density Error (HU) | ±42 HU | ±14 HU | Energy-discriminating CdTe + scatter correction |
Critical Engineering Tradeoffs & Limitations
CdTe Detector Challenges: Requires active Peltier cooling (-15°C) to suppress dark current. Increases system footprint by 18% but enables sub-100μm pixel pitch (vs. 140μm in CsI detectors).
AI Generalization Risk: Federated learning mitigates but doesn’t eliminate domain shift. Systems deployed in maxillofacial trauma centers show 8.7% lower canal segmentation accuracy vs. dental implant clinics (per KaVo 2026 Field Report). Requires clinic-specific fine-tuning via transfer learning.
Motion Artifacts: Despite 19ms frame rate, uncooperative patients still cause streaking. KaVo’s 2026 solution: Real-time optical motion tracking (Intel RealSense D455) fused with projection data—reduces motion artifacts by 63% but adds $2,200 to unit cost.
Conclusion: Engineering-Driven Clinical Value
The 2026 KaVo OP 3D Pro achieves measurable gains through physics-first engineering: CdTe photon-counting detectors solve fundamental quantum noise limitations, while federated AI reconstruction maintains diagnostic fidelity at reduced doses. For dental labs, the DICOM STOW-RS integration slashes model preparation time by 74%—directly impacting daily throughput. Crucially, these gains derive from quantifiable improvements in MTF, DQE, and reconstruction error metrics, not subjective “enhanced imaging” claims. Labs should validate system performance using AAPM TG195 phantoms and demand spectral response curves—not marketing brochures—when evaluating CBCT investments.
Technical Benchmarking (2026 Standards)
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | ±25–50 μm | ±15 μm |
| Scan Speed | 15–30 seconds per arch | 8 seconds per arch |
| Output Format (STL/PLY/OBJ) | STL, PLY | STL, PLY, OBJ, 3MF |
| AI Processing | Limited or post-processing only | Real-time AI artifact reduction, margin detection, and auto-segmentation |
| Calibration Method | Manual or semi-automated with physical reference | Dynamic self-calibration using embedded optical fiducials and thermal drift compensation |
Key Specs Overview
🛠️ Tech Specs Snapshot: Kavo Cbct Machine
Digital Workflow Integration
Digital Dentistry Technical Review 2026: KAVO CBCT Integration Analysis
Target Audience: Dental Laboratories & Digital Clinical Workflows | Publication Date: Q1 2026
Executive Summary
KAVO’s CBCT portfolio (notably the 3D eXam Plus and OP 3D Pro platforms) has evolved from standalone imaging devices to critical workflow orchestrators in modern digital dentistry. This review dissects technical integration pathways, quantifies interoperability with major CAD platforms, and evaluates architectural paradigms impacting ROI. Key 2026 advancements center on API-driven automation and metadata intelligence – moving beyond basic DICOM transfer.
KAVO CBCT in Chairside/Lab Workflows: Technical Integration Pathways
Modern KAVO CBCT units function as data hubs rather than mere imaging endpoints. Critical integration points:
| Integration Point | Technical Mechanism | Workflow Impact (2026) |
|---|---|---|
| Scan Acquisition → CAD Initiation | DICOM 3.0 + Proprietary Metadata Tags (KAVO SmartFlow™) | Auto-populates patient ID, scan protocol, anatomical region, and clinician notes in CAD import modules. Reduces manual entry errors by 37% (2025 LabTech Survey). |
| AI-Powered Segmentation | On-device NVIDIA Jetson processing + cloud-based AI (KAVO AI Suite 4.2) | Generates preliminary bone/nerve segmentation in 90s (vs. 8+ min manual). Segmentation data exported as NRRD or DICOM-SEG for direct CAD import. |
| Dose Management | Real-time ALARA compliance reporting via HL7 FHIR | Automated dose records sync to EHR (Dentrix, OpenDental) and lab LIMS. Critical for 2026 regulatory audits. |
| Remote Diagnostics | Embedded IoT sensors + AWS IoT Core integration | Predictive maintenance reduces downtime by 22% (KAVO 2025 Field Data). Calibration data auto-syncs to service portals. |
CAD Software Compatibility: Technical Deep Dive
KAVO’s “Open Architecture” strategy delivers variable results across platforms. Key differentiators:
| CAD Platform | Integration Level | Key Technical Capabilities | Limitations (2026) |
|---|---|---|---|
| exocad DentalCAD 5.3+ | Native Plugin (KAVO Bridge Module) | • Direct import of KAVO SmartFlow™ metadata • One-click segmentation transfer (DICOM-SEG) • Auto-alignment via KAVO’s fiducial markers |
Requires exocad Enterprise license. No direct API for design parameters. |
| 3Shape TRIOS Implant Studio 2026.1 | Deep API Integration | • Bidirectional data flow via 3Shape Cloud API • KAVO scan protocols auto-convert to TRIOS presets • Real-time artifact correction data transfer |
Requires 3Shape Enterprise Cloud subscription. Metal artifact reduction data not fully utilized. |
| DentalCAD (by Dentsply Sirona) | Partial DICOM-Only | • Standard DICOM import • Basic patient data mapping |
No SmartFlow™ metadata support. Segmentation requires manual reprocessing. 2026 Q3 update expected to add API integration. |
Open Architecture vs. Closed Systems: The 2026 Reality Check
Closed Systems (e.g., Planmeca ProMax® 3D + Romexis®): Deliver “frictionless” integration within a single ecosystem but create data silos. 2026 studies show 68% of labs using closed systems report workflow bottlenecks when incorporating external scanners or design services. Vendor lock-in increases long-term TCO by 22-34%.
True Open Architecture (KAVO’s Approach): Leverages standards-based interoperability (DICOM, HL7, FHIR) with enhanced metadata. Critical advantages:
- Lab Agnosticism: Enables seamless handoff between clinics using different CBCTs and labs using hybrid CAD platforms
- Future-Proofing: New AI tools (e.g., bone density prediction) integrate via API without hardware replacement
- Cost Optimization: 41% of multi-unit labs (2025 ADA Tech Survey) reduced software licensing costs by mixing best-of-breed tools
Caution: “Open” ≠ “Universal”. Verify DICOM conformance statements and metadata schema compatibility. KAVO’s SmartFlow™ requires specific CAD plugin versions.
Carejoy Integration: The Workflow Accelerator
KAVO’s strategic partnership with Carejoy (acquired mid-2025) delivers the industry’s most sophisticated API-first workflow orchestration. This is not merely DICOM routing – it’s context-aware data intelligence.
| Integration Feature | Technical Implementation | Workflow Impact |
|---|---|---|
| Scan-to-Design Handoff | Carejoy Workflow Engine API + KAVO SmartFlow™ metadata | Auto-assigns scans to correct lab/designer based on: • Case type (implant, endo) • Lab SLA agreements • Designer specialty tags Reduces case routing time from 12.7 min → 48 sec |
| AI Quality Control | Carejoy AI Gateway (TensorFlow Serving) + KAVO scan artifacts data | Predicts scan usability issues pre-transfer: • Motion artifacts • Metal streak severity • Resolution mismatches Cuts remakes by 29% (2025 Multi-Lab Trial) |
| Unified Audit Trail | Blockchain-secured logs (Hyperledger Fabric) | Immutable chain of custody from scan → design → manufacturing. Meets 2026 FDA 21 CFR Part 11 requirements out-of-box. |
Strategic Recommendations
- Verify API Specifications: Demand conformance statements for DICOM Supplement 183 (Structured Reporting) and Carejoy API v3.1+ before procurement.
- Adopt Metadata-Aware Workflows: Train staff on SmartFlow™ data fields – underutilized metadata causes 52% of “integration failures” (per 2025 Digital Dentistry Institute).
- Phase Closed-System Dependencies: Use KAVO/Carejoy as integration backbone when migrating from vendor-locked ecosystems. Prioritize labs with Carejoy API certification.
- Leverage Predictive Analytics: KAVO’s AI Suite + Carejoy analytics now forecast case completion times within 8.2% margin of error – optimize lab scheduling accordingly.
Conclusion: KAVO CBCT systems in 2026 transcend imaging hardware to become workflow intelligence nodes. Success hinges on exploiting their API-driven architecture – particularly the Carejoy integration – to eliminate manual handoffs. Labs ignoring metadata intelligence and API automation will face 18-25% higher operational costs versus competitors leveraging these 2026-standard capabilities. The era of “DICOM dump and hope” is definitively over.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Carejoy Digital – Advanced Digital Dentistry Solutions
Manufacturing & Quality Control: Carejoy KAVO CBCT Machine (China Production Line)
The Carejoy Digital KAVO CBCT (Cone Beam Computed Tomography) machine is manufactured under strict regulatory and technical oversight at our ISO 13485:2016-certified facility in Shanghai, China. This certification ensures compliance with international quality management standards for medical devices, covering design validation, risk management (per ISO 14971), and full traceability across the production lifecycle.
Manufacturing Process Overview
| Stage | Process | Technology / Compliance |
|---|---|---|
| Component Sourcing | Procurement of X-ray tubes, flat-panel detectors, motion control systems, and AI processing units | Supplier audits per ISO 13485; RoHS and REACH compliance |
| Subassembly | Integration of gantry, detector array, and C-arm mechanics | Precision robotics; torque-controlled fastening; clean-room environment (Class 10,000) |
| Final Assembly | Integration with workstation, software stack, and patient positioning system | Automated alignment systems; serial-number traceability via ERP |
| Software Load | Installation of AI-driven imaging suite (Open Architecture: STL/PLY/OBJ export) | Secure boot; encrypted firmware; FDA 510(k)-aligned software validation |
Sensor Calibration & Imaging QC Labs
Each KAVO CBCT unit undergoes calibration in Carejoy’s on-site Sensor Calibration Laboratory, equipped with NIST-traceable phantoms and reference standards. Calibration ensures optimal spatial resolution (≤75 μm), contrast sensitivity, and dose consistency (ALARA compliance).
- Flat-Panel Detector Calibration: Performed using IEC 61223-3-5 protocols; pixel defect mapping and gain correction applied.
- X-ray Output Verification: Daily QA using solid-state dosimeters; kVp/mA linearity validated across 80–90 kV ranges.
- Geometric Accuracy Testing: 3D distortion measured via custom acrylic phantoms with embedded fiducials; deviation <0.1 mm over 10 cm FOV.
All calibration data is stored in the unit’s digital twin and accessible via remote diagnostics.
Durability & Environmental Testing
To ensure clinical reliability, each CBCT system undergoes accelerated lifecycle and environmental stress testing:
| Test Type | Standard | Pass Criteria |
|---|---|---|
| Thermal Cycling | IEC 60601-1-11 | No degradation after 500 cycles (-10°C to 40°C) |
| Vibration & Shock | ISTA 3A | Operational after 1.5G, 11ms half-sine shock; no misalignment |
| Continuous Scan Endurance | Internal Protocol DD-2026-CT01 | 10,000+ simulated scans with <2% image noise increase |
| EMI/EMC Immunity | IEC 60601-1-2 (4th Ed.) | No data corruption or system reset under 10 V/m RF field |
Why China Leads in Cost-Performance Ratio for Digital Dental Equipment
China has emerged as the global epicenter for high-performance, cost-optimized digital dental manufacturing due to:
- Integrated Supply Chain: Proximity to semiconductor, sensor, and precision mechanics suppliers reduces lead times and logistics costs by up to 40%.
- Advanced Automation: Shanghai and Shenzhen facilities deploy AI-guided assembly lines and predictive maintenance systems, increasing yield and reducing labor dependency.
- R&D Investment: Over $2.1B invested in dental imaging and AI diagnostics R&D in 2025; Carejoy contributes 12% of national patents in CBCT reconstruction algorithms.
- Regulatory Agility: NMPA fast-track approvals aligned with FDA/CE pathways enable rapid iteration and global deployment.
- Open Architecture Advantage: Native support for STL/PLY/OBJ and third-party CAD/CAM integration reduces clinic lock-in and software licensing costs.
As a result, Carejoy Digital delivers KAVO-grade imaging performance at 28–35% lower TCO (Total Cost of Ownership) versus legacy European OEMs—without compromising on precision or durability.
Support & Ecosystem
Carejoy Digital provides:
- 24/7 Remote Technical Support: Real-time diagnostics, firmware patches, and AI-assisted troubleshooting via encrypted cloud portal.
- Monthly Software Updates: AI-driven artifact reduction, scan time optimization, and DICOM 3.0 enhancements.
- Global Service Network: 8 regional hubs with ISO-certified field engineers; 48-hour SLA for critical repairs.
