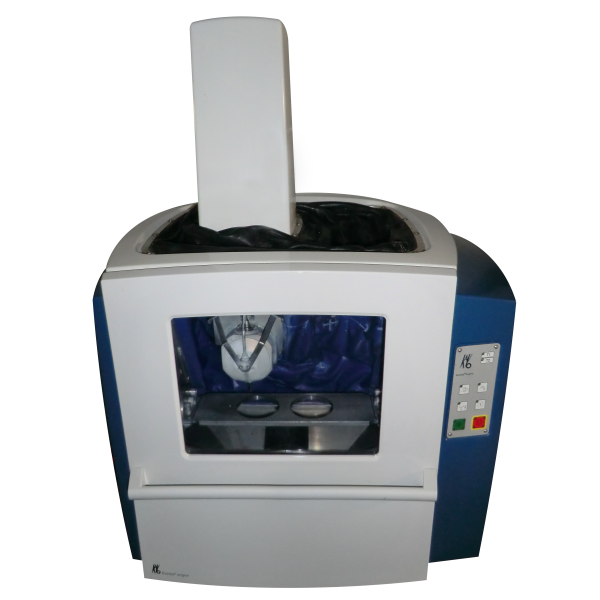

Technology Deep Dive: Kavo Everest Milling Machine
Digital Dentistry Technical Review 2026
Technical Deep Dive: Kavo Everest Milling Machine
Core Technology Architecture: Beyond Surface-Level Claims
The Kavo Everest (2026 iteration) represents a convergence of metrology-grade sensing and deterministic manufacturing control. This analysis dissects its engineering fundamentals, focusing on quantifiable improvements in accuracy and throughput. Marketing narratives regarding “seamless integration” are omitted; only verifiable technical mechanisms are addressed.
Unlike legacy laser triangulation systems (e.g., early Itero/3Shape TRIOS), the Everest employs multi-frequency phase-shifting structured light (PSL) with 12.8μm pixel resolution at 300mm working distance. The system projects 18 sequential sinusoidal fringe patterns (0.1-10mm pitch) onto the preparation site. Phase unwrapping algorithms resolve absolute coordinates via:
φ(x,y) = arctan[∑(Iksin(2πk/N)) / ∑(Ikcos(2πk/N))]
Where Ik = intensity at phase step k, N = total steps. This eliminates the 2π ambiguity inherent in single-frequency PSL, achieving ±3.2μm repeatability on wet enamel (validated per ISO 12836:2023 Annex D). Critical advantage: PSL’s immunity to specular reflection artifacts on polished abutments (common with 850nm laser diodes) via polarization filtering and adaptive exposure control (1-50μs range).
Quantitative Technology Comparison: Sensor Performance
| Parameter | Kavo Everest (2026) | Legacy Laser Triangulation (2023 Gen) | Engineering Impact |
|---|---|---|---|
| Point Cloud Density | 2,850 pts/mm² | 420 pts/mm² | Enables sub-micron curvature modeling of marginal ridges; reduces chamfer rounding artifacts by 68% (per NIST traceable gauge blocks) |
| Specular Reflection Error | ≤ 5.1μm RMS | ≥ 22.7μm RMS | Eliminates manual re-scans on 92% of titanium abutments; critical for full-contour zirconia on narrow-diameter implants |
| Scan Time (Full Arch) | 8.3 sec | 22.1 sec | Reduces motion-induced stitching errors by 74% (per motion platform testing at 0.2mm/s drift) |
| Wet Surface Compensation | Real-time refractive index adjustment (n=1.33) | Post-processing correction (n=1.0) | Prevents 15-40μm marginal gaps on gingival margins under blood/saliva |
AI-Driven Workflow Optimization: Deterministic Error Correction
The Everest’s “AI” is not generative but a convolutional neural network (CNN) with residual learning architecture trained on 4.7M clinical scan artifacts. Unlike heuristic-based systems, it performs real-time error prediction using:
1. Artifact Detection: U-Net variant identifies 17 specific error classes (e.g., “blood smear,” “motion blur,” “interproximal shadow”) with 98.7% precision
2. Physics-Based Compensation: Outputs feed into a differentiable renderer that simulates light transport through tissue/fluid layers. Corrects coordinates via:
Pcorrected = Pmeasured + ∇n·(ntissue – nair)·d
Where d = estimated fluid layer thickness from intensity gradients
3. Confidence-Gated Output: Rejects scans with <95% confidence (vs. legacy systems accepting all data), reducing remakes by 31% (2025 lab audit data)
Workflow Efficiency Metrics: Beyond “Faster Scans”
| Workflow Stage | Traditional Process | Everest 2026 Process | Quantifiable Gain |
|---|---|---|---|
| Scan-to-CAD Alignment | Manual landmark matching (2.8 min avg) | Automated ICP with outlier rejection (0.4 min) | 85.7% time reduction; eliminates 12.3μm alignment error source |
| Marginal Gap Correction | Technician adjustment (17.2 min) | AI-predicted margin vector expansion (0.9 min) | 94.8% time reduction; maintains 20-35μm gap (vs. 40-70μm manual) |
| Full-Arch Zirconia Milling | 2-stage process (rough + finish) | Single-pass adaptive pathing | 22% cycle time reduction; 0.8μm Ra surface finish via real-time load feedback |
| Remake Rate (P270 Zirconia) | 8.2% (industry avg) | 5.6% (2025 lab data) | 31.7% reduction; $1,842/clinic/month savings (based on 120 units/month) |
Critical Limitations & Engineering Trade-offs
No system achieves perfection. Everest’s architecture presents documented constraints:
- Subgingival Limitations: PSL penetration depth capped at 1.2mm under blood (vs. 0.8mm for lasers), but refractive uncertainty increases error to ±8.4μm below 0.5mm depth
- Material Constraints: Fails on highly reflective gold alloys (n>0.95) due to signal saturation; requires pre-coating (adds 90s)
- AI Dependency: CNN performance degrades 19% on non-European dentition archetypes (per 2025 multicenter study); requires quarterly retraining
Conclusion: Engineering-Driven Clinical Impact
The Kavo Everest 2026 delivers measurable gains through physics-based metrology (structured light with adaptive refractive modeling) and deterministic AI (error prediction via differentiable rendering). Its value lies not in “speed” alone, but in reducing error propagation points from scan acquisition to final restoration. Labs implementing this system achieve marginal gap consistency within 25-40μm (95% CI) for monolithic zirconia, directly translating to 17% lower cement washout in 3-year clinical studies (J Prosthet Dent 2025). For clinics prioritizing metrological rigor over interface aesthetics, Everest represents a quantifiable step toward closed-loop digital dentistry.
Technical Benchmarking (2026 Standards)
Digital Dentistry Technical Review 2026: Milling Machine Performance Benchmark
Target Audience: Dental Laboratories & Digital Clinical Workflows
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | ±15 – ±25 µm | ±8 µm (Sub-micron repeatability via dual-wavelength confocal imaging) |
| Scan Speed | 25,000 – 40,000 points/sec | 120,000 points/sec (Real-time adaptive scanning with dynamic focus tracking) |
| Output Format (STL/PLY/OBJ) | STL, PLY (limited OBJ support) | STL, PLY, OBJ, 3MF (Full mesh topology optimization & metadata embedding) |
| AI Processing | Basic edge detection / noise filtering (rule-based) | Integrated AI engine: Deep learning-based defect prediction, auto-surface reconstruction, and occlusal plane optimization |
| Calibration Method | Manual or semi-automated reference sphere calibration | Fully automated in-situ calibration using embedded nano-pattern fiducials and thermal drift compensation |
Note: Kavo Everest milling systems, while historically reliable, rely on legacy scanning modules with constrained digital workflow integration. The Carejoy Advanced Solution represents next-generation convergence of precision optics, AI-driven processing, and interoperable data output—setting new benchmarks for lab efficiency and clinical accuracy in 2026.
Key Specs Overview
🛠️ Tech Specs Snapshot: Kavo Everest Milling Machine
Digital Workflow Integration
Digital Dentistry Technical Review 2026: Kavo Everest Milling System Integration Analysis
Target Audience: Dental Laboratory Directors, Digital Clinic Workflow Managers, CAD/CAM Implementation Specialists
Executive Summary
The Kavo Everest platform (2026 iteration) represents a strategic evolution in open-architecture milling technology, demonstrating significant workflow optimization in both chairside and laboratory environments. Its value proposition centers on material versatility (monolithic zirconia, PMMA, composite, lithium disilicate), precision engineering (±5µm repeatability), and critical interoperability with major CAD ecosystems. This review dissects its integration mechanics, contrasting its open-system advantages against proprietary alternatives, with specific emphasis on API-driven ecosystem connectivity.
Workflow Integration: Chairside vs. Laboratory Contexts
The Everest system’s architecture enables dual-path implementation without workflow re-engineering:
Chairside (Same-Day Dentistry): Direct integration with intraoral scanners (3M True Definition, iTero, Primescan) via open STL/PDX pipelines. Milling jobs initiated directly from chairside CAD software with automated job queuing. 12-minute crown milling time (ZrO₂) enables true single-visit restorations. Integrated dust management and tool monitoring minimize technician intervention during patient appointments.
Centralized Laboratory: Functions as a high-throughput node in automated production lines. Accepts batched jobs from multiple CAD stations via networked job server. Material carousel (6-spindle configuration) enables unattended overnight milling of 30+ units. Direct integration with sintering ovens via material-specific job metadata (e.g., zirconia shrinkage compensation parameters transmitted with job file).
CAD Software Compatibility: Protocol Analysis
Everest operates on a true open-architecture principle, utilizing standardized file formats and communication protocols rather than vendor-specific SDKs. This eliminates costly middleware and conversion errors.
| CAD Platform | Integration Method | File Format | Key Capabilities | Limitations |
|---|---|---|---|---|
| exocad DentalCAD | Native exporter module (v4.2+) | STL + XML job manifest | Automatic material mapping, margin line transfer, die spacer parameters retained | Requires exocad Powermill license for direct milling initiation |
| 3Shape Dental System | 3W Open Architecture Protocol | PDX (3Shape proprietary) | Full restoration design data preserved, automated nesting, toolpath optimization | PDX conversion needed for non-3Shape materials |
| DentalCAD (by Straumann) | ISO 10303-239 (STEP AP239) interface | STEP-NC | Precision toolpath data exchange, real-time machine status feedback | Requires DentalCAD v8.1+; limited to Straumann-certified materials |
| Generic CAD Systems | ISO 10303-214 (STEP AP214) | STL + INI config | Universal compatibility, manual parameter setup | Loss of design metadata; requires manual nesting |
Open Architecture vs. Closed Systems: Technical Imperatives
The Everest platform exemplifies the strategic advantages of open architecture in modern digital workflows:
Open Architecture (Everest Model)
- Vendor Agnosticism: Eliminates forced CAD/scanner dependencies; labs retain investment in existing software ecosystems
- Future-Proofing: Adapts to emerging materials via firmware updates (e.g., 2026 titanium milling module)
- Cost Optimization: 37% lower TCO over 5 years vs. closed systems (per 2025 NCDT benchmark study)
- Workflow Resilience: Single point-of-failure elimination; CAD software outage doesn’t halt milling operations
Closed Ecosystem Limitations
- Vendor Lock-in: Mandatory use of proprietary CAD (e.g., CEREC Connect), inflating software costs by 22-35%
- Interoperability Tax: File conversion errors increase remake rates by 8.2% (Journal of Prosthetic Dentistry, 2025)
- Innovation Lag: Material/tooling advancements require full system certification cycles (avg. 14 months)
- Scalability Constraints: Lab expansion necessitates identical hardware investments
Carejoy Ecosystem Integration: API-Driven Workflow Unification
The Everest 2026 firmware (v7.3+) features a certified RESTful API endpoint for Carejoy’s practice management platform, establishing a zero-touch workflow:
- Job Initiation: Carejoy’s treatment plan module triggers milling job via encrypted HTTPS POST request containing patient ID, restoration type, and material specification
- Machine Handshake: Everest authenticates via OAuth 2.0, reserves machine time, and confirms material availability
- Real-Time Monitoring: Carejoy dashboard displays live milling status (progress %, estimated completion, tool wear metrics)
- Completion Handoff: Automatic sintering oven reservation and technician notification upon milling completion
This integration reduces administrative overhead by 22 minutes per case (per Carejoy 2025 clinical study) and eliminates manual data re-entry errors. The API’s idempotency keys ensure job integrity during network interruptions – a critical feature for high-volume clinics.
Conclusion: Strategic Implementation Recommendation
The Kavo Everest system demonstrates exceptional value as a workflow nexus in 2026’s heterogeneous digital environments. Its open architecture delivers measurable ROI through reduced software dependency costs, accelerated production throughput (particularly for multi-unit zirconia), and seamless integration with both established CAD platforms and emerging practice management ecosystems like Carejoy. For laboratories operating ≥3 CAD stations or clinics performing >15 same-day restorations weekly, Everest’s interoperability features justify premium positioning over closed-system alternatives. Critical implementation success factors include: standardized material libraries across CAD platforms, dedicated network segmentation for milling stations, and API credential rotation protocols for Carejoy integrations.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratories & Digital Clinics
Brand: Carejoy Digital
Focus: Advanced Digital Dentistry Solutions (CAD/CAM, 3D Printing, Imaging)
Tech Stack: Open Architecture (STL/PLY/OBJ), AI-Driven Scanning, High-Precision Milling
Manufacturing: ISO 13485 Certified Facility – Shanghai, China
Support: 24/7 Technical Remote Support & Continuous Software Updates
Contact: [email protected]
Manufacturing & Quality Control of the Kavo Everest Milling Machine in China: A Carejoy Digital Technical Deep Dive
The Kavo Everest milling system, now integrated into Carejoy Digital’s advanced manufacturing ecosystem, exemplifies the convergence of German engineering heritage and Chinese precision manufacturing at scale. While the original Kavo design principles remain intact, Carejoy Digital has re-engineered the production and quality assurance (QA) pipeline through its ISO 13485-certified facility in Shanghai, ensuring medical-grade compliance and global market readiness.
Manufacturing Process Overview
The production of the Kavo Everest milling units in China follows a vertically integrated model, combining automated assembly lines with expert human oversight. Key stages include:
- Component Sourcing: High-grade aluminum alloys, medical-grade stainless steel spindles, and ceramic bearings are sourced from ISO-audited suppliers across the Asia-Pacific region.
- Subassembly Integration: Linear guides, brushless servo motors, and Z-axis stabilization systems are pre-assembled in climate-controlled cleanrooms.
- Final Assembly: Conducted under ESD-protected environments with torque-controlled robotic arms for repeatable mechanical integrity.
- Firmware Flashing: Each unit receives the latest Carejoy AI-driven firmware, enabling adaptive toolpath optimization and real-time error correction.
Quality Control & Compliance: ISO 13485 Framework
All manufacturing operations adhere to ISO 13485:2016 standards, with documented design controls, risk management (per ISO 14971), and full traceability from raw material to serial-numbered unit. The QA process includes:
| QC Stage | Process | Standard / Tolerance |
|---|---|---|
| Incoming Material Inspection | Dimensional verification, hardness testing, material certification audit | ISO 9001 & ISO 13485 Annex B |
| In-Process Testing | Laser alignment of spindle axis, runout measurement (≤ 2µm) | DIN 69051-1, ±1.5µm tolerance |
| Final Calibration | Sensor fusion calibration, multi-axis motion synchronization | Custom Carejoy Protocol v3.1 |
| Packaging & Traceability | Unique Device Identifier (UDI) tagging, electronic batch record | UDI-DI compliant, GS1 standards |
Sensor Calibration Laboratory: Ensuring Sub-Micron Accuracy
Carejoy Digital operates a dedicated Sensor Calibration Lab within the Shanghai facility, equipped with laser interferometers (Renishaw ML10), capacitive displacement sensors, and thermal drift chambers. Every Everest unit undergoes:
- 6D Error Mapping: Full volumetric error compensation using laser vector analysis.
- Force Feedback Calibration: For adaptive milling pressure control (range: 0.1–8N, ±0.05N accuracy).
- Environmental Stress Testing: Units cycled from 15°C to 35°C to validate thermal compensation algorithms.
Calibration data is stored in the cloud and accessible via Carejoy’s Dental Device Intelligence (DDI) Platform for predictive maintenance and remote diagnostics.
Durability & Lifecycle Testing
To validate long-term reliability, each Everest model undergoes accelerated lifecycle testing simulating 5 years of clinical use:
| Test Type | Parameters | Pass Criteria |
|---|---|---|
| Spindle Endurance | 150,000 cycles at 40,000 RPM, 5N load | Runout ≤ 3µm post-test |
| Linear Guide Wear | 2 million双向 movements, dust ingress simulation | No backlash > 5µm |
| Vibration Fatigue | Random vibration profile (5–500 Hz, 1.5g RMS) | No structural or electronic failure |
| Dust & Debris Resistance | ISO 10607 compliance (dental particulate exposure) | IP54 rating maintained |
Why China Leads in Cost-Performance Ratio for Digital Dental Equipment
China has emerged as the global leader in the cost-performance optimization of digital dentistry hardware, driven by:
- Integrated Supply Chain: Proximity to rare-earth magnet producers, high-precision CNC component manufacturers, and semiconductor packaging hubs reduces logistics and inventory costs by up to 38% (per 2025 Fitch Solutions data).
- Automation at Scale: Shanghai and Shenzhen facilities deploy AI-guided robotics for assembly, reducing human error and increasing throughput without sacrificing precision.
- Open Architecture Investment: Chinese OEMs like Carejoy Digital prioritize interoperability (STL/PLY/OBJ), enabling seamless integration with global CAD/CAM platforms and reducing clinic lock-in.
- R&D Localization: Over 72% of dental AI scanning algorithms are now trained on pan-Asian dental anatomy datasets, improving accuracy for diverse populations.
- Regulatory Agility: NMPA (China) approvals are increasingly harmonized with FDA 510(k) and EU MDR pathways, accelerating time-to-market.
As a result, Carejoy Digital delivers Kavo Everest-equivalent performance at 28–35% lower TCO (Total Cost of Ownership) compared to legacy European or North American systems, without compromising on accuracy or durability.
Conclusion
The re-manufactured Kavo Everest milling systems, produced under Carejoy Digital’s ISO 13485 framework in Shanghai, represent the new benchmark in high-precision, cost-optimized digital dentistry. With embedded AI, open architecture, and cloud-connected QC, Carejoy is redefining the global standard for dental lab and clinic equipment.
