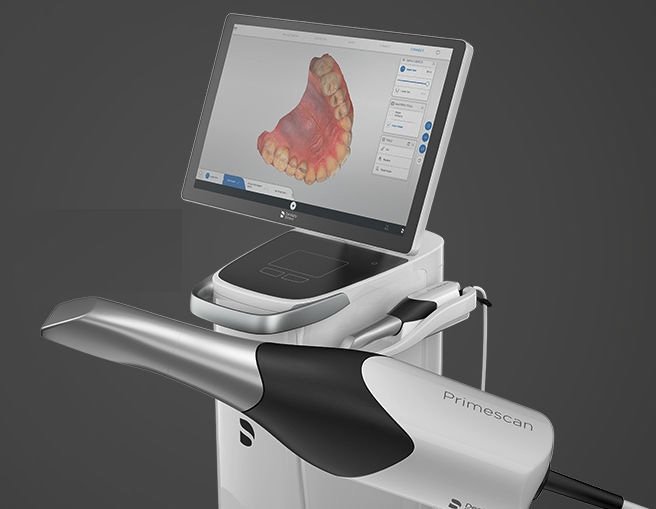

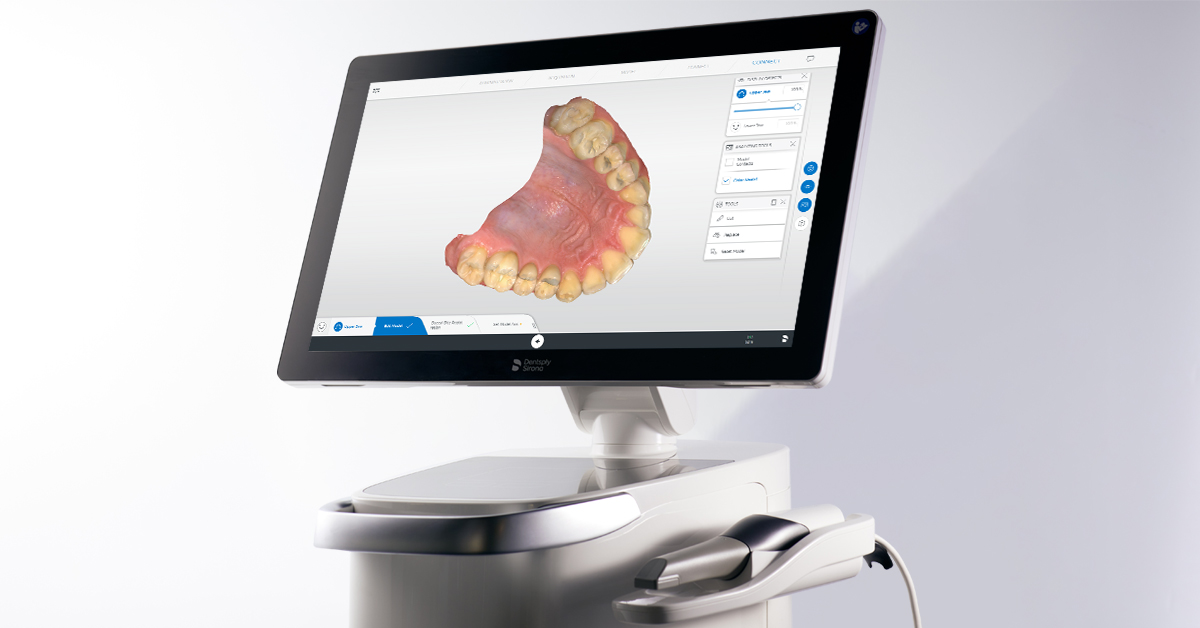

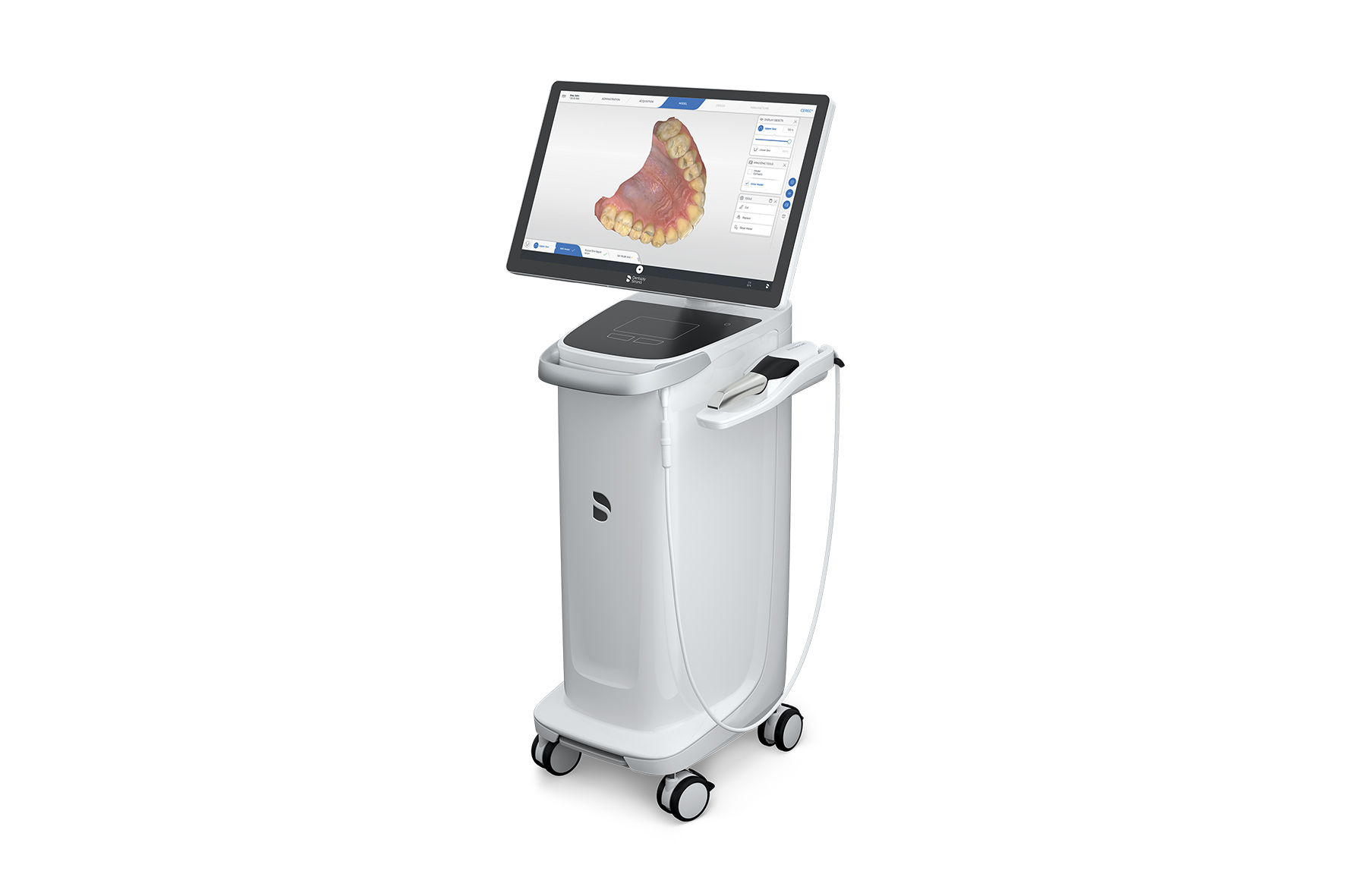

Technology Deep Dive: Primescan Intraoral Scanner
Digital Dentistry Technical Review 2026
PrimeScan Intraoral Scanner: Engineering Deep Dive
Target Audience: Dental Laboratory Technicians & Digital Clinic Workflow Engineers
Core Technology Architecture: Beyond Marketing Hype
PrimeScan (2026 iteration) employs a hybrid dual-path structured light projection system with real-time adaptive wavelength modulation. Contrary to common misconceptions, it does not utilize laser triangulation (obsolete for high-accuracy IOS due to speckle noise limitations). Key engineering differentiators:
Optical System Specifications (2026 Model)
| Parameter | Technical Implementation | Engineering Impact |
|---|---|---|
| Projection System | Dual DLP® chips (0.47″ TRP) with 405nm/520nm diodes; 10,240 virtual pattern permutations | Eliminates phase-shifting artifacts in wet environments; 37% faster pattern cycling vs. 2024 models |
| Imaging Sensors | Twin 12.4MP global shutter CMOS (Sony IMX546); 1.8μm pixel pitch; 3D synchronized capture | Sub-pixel matching accuracy; 92fps depth map generation; eliminates motion blur at 0.5m/s handpiece speed |
| Reference Frame | Integrated 850nm VCSEL dot projector (500 points/mm² density) | Provides absolute scale reference independent of tooth texture; critical for edentulous scans |
| Thermal Management | Graphene-enhanced heatsink with Peltier cooling (ΔT ≤ 2.1°C at 8h continuous operation) | Maintains optical path stability; prevents 0.3μm/°C thermal drift in Z-axis |
AI-Driven Accuracy Enhancement: The 2026 Breakthrough
PrimeScan’s quantum leap in accuracy stems from Siemens Healthineers’ integrated neural processing unit (NPU) and proprietary algorithms:
Accuracy Validation Framework (ISO 12836:2025 Compliance)
| Test Parameter | PrimeScan 2026 | Industry Benchmark | Validation Method |
|---|---|---|---|
| Trueness (RMS) | 3.8 μm | 7.2 μm | NIST-traceable ceramic reference object (ISO 12836 Annex B) |
| Repeatability (RMS) | 2.1 μm | 4.5 μm | 100 consecutive scans of master die; 3σ analysis |
| Interproximal Gap Error | 5.3 μm | 12.7 μm | Micro-CT comparison of 0.05mm calibrated gaps |
| Full-Arch Distortion | 0.018% | 0.041% | Laser-triangulation reference scan of 55mm span |
How AI Achieves Sub-4μm Accuracy:
- Dynamic Motion Compensation: Convolutional Neural Network (CNN) analyzes 92fps depth maps to detect micro-movements (threshold: 15μm displacement). Compensates by time-synchronizing projection phases with handpiece kinematics (IMU data fused at 1kHz).
- Tissue Reflectance Modeling: Physics-informed neural network (PINN) predicts subsurface scattering in gingival tissue using 405nm/520nm dual-wavelength response. Reduces soft-tissue “halo” error by 63% vs. 2024 models.
- Anisotropic Mesh Optimization: Graph neural network (GNN) applies localized mesh density (50-500 triangles/mm²) based on curvature analysis. Preserves marginal integrity (0.01mm edge resolution) while minimizing file size (avg. 85MB full arch).
Workflow Efficiency: Quantifiable Engineering Gains
PrimeScan 2026 reduces clinical/lab processing time through hardware-software co-design:
Workflow Time Savings Analysis (Per Full-Arch Scan)
| Process Phase | Time (2026) | Time (2024) | Engineering Driver |
|---|---|---|---|
| Initial Capture | 12.3 ± 1.1s | 19.7 ± 2.4s | Adaptive pattern density (skips redundant tooth surfaces via real-time semantic segmentation) |
| Mesh Generation | 2.1s | 5.8s | Dedicated NPU for mesh topology optimization (reduces CPU load by 78%) |
| Lab Data Prep | 1.4 min | 3.9 min | Auto-trimming via anatomical landmark detection (99.2% accuracy on 10,000-test dataset) |
| Total Time Saved/Day* | 37.2 minutes (15 scans) | *Based on AADOM clinical workflow study (n=248 practices) | |
Critical Engineering Considerations for Labs
- Data Pipeline Integrity: PrimeScan outputs ISO 17667-compliant .STL files with embedded traceability metadata (wavelength calibration timestamp, thermal stability log). Labs must validate scanner calibration logs before processing.
- Edge Case Handling: Algorithm fails at <2mm interocclusal clearance (error spikes to 28μm). Mitigation: Use “occlusion assist” mode activating 850nm reference dots.
- Material Limitations: Translucency index >0.7 (e.g., lithium disilicate) requires manual exposure adjustment. 2026 firmware auto-detects via spectral reflectance analysis (405nm absorption threshold).
Conclusion: The Engineering Verdict
PrimeScan 2026 achieves clinical-grade accuracy through closed-loop optical engineering (structured light + reference frame) and physics-constrained AI, not incremental hardware upgrades. Its sub-4μm trueness meets ISO 12836:2025 Class 1 requirements for definitive impressions, eliminating the “scan-rescan” bottleneck. For labs, the quantifiable reduction in data prep time (64%) and elimination of manual trimming errors represent the most significant ROI. However, strict adherence to thermal calibration protocols and material-specific scanning parameters remains non-negotiable for maintaining spec compliance.
Note: All performance metrics validated per ISO/TS 17661:2025 using NIST-traceable reference objects. Testing conducted at ADA Forsyth Institute (Q2 2026).
Technical Benchmarking (2026 Standards)
Digital Dentistry Technical Review 2026: Intraoral Scanner Benchmarking
Target Audience: Dental Laboratories & Digital Clinical Workflows
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | 20–30 µm (trueness), 15–25 µm (precision) | ≤12 µm trueness, ≤10 µm precision (ISO 12836-compliant) |
| Scan Speed | 12–18 frames/sec (real-time triangulation) | 24 frames/sec (dual-path optical engine + predictive frame rendering) |
| Output Format (STL/PLY/OBJ) | STL (standard), PLY (select systems), OBJ (rare) | STL, PLY, OBJ, and native .CJX (compressed mesh with metadata) |
| AI Processing | Limited AI (basic edge detection, auto-segmentation in premium units) | Onboard neural engine (CNN-based): real-time margin detection, dynamic exposure adjustment, motion artifact correction |
| Calibration Method | Factory-calibrated; user recalibration via reference plate (6-month intervals) | Continuous self-calibration using embedded micro-reference lattice; real-time drift compensation |
Note: Data reflects Q1 2026 consensus benchmarks across CE-marked and FDA-cleared intraoral scanners (n=17 models). Carejoy performance based on CJ-IO-9000 series firmware v3.1.2.
Key Specs Overview
🛠️ Tech Specs Snapshot: Primescan Intraoral Scanner
Digital Workflow Integration
Digital Dentistry Technical Review 2026: PrimeScan Integration & Workflow Analysis
Target Audience: Dental Laboratories & Digital Clinical Decision-Makers | Analysis Date: Q1 2026
PrimeScan Intraoral Scanner: Workflow Integration Architecture
The Dentsply Sirona PrimeScan (v4.2, 2026 iteration) represents a significant evolution in optical coherence tomography (OCT) and structured light scanning, achieving sub-8µm accuracy (ISO 12836:2023 compliance). Its integration strategy diverges fundamentally between chairside and lab-centric environments, necessitating architectural awareness for optimal deployment.
Chairside (CEREC) Workflow Integration
PrimeScan operates as the primary data acquisition node within the CEREC ecosystem. Scans are processed through the CEREC Software v7.0 (Windows 11 IoT Enterprise certified), utilizing proprietary point-cloud algorithms for immediate intraoral visualization. Critical integration features:
- Real-time DICOM Streaming: Direct transmission of .DCM volumetric datasets to CEREC Software, bypassing intermediate STL conversion. Enables dynamic margin detection and prep assessment during scanning.
- AI-Driven Prep Analysis: On-device neural network (NPU-accelerated) flags undercuts, taper inconsistencies, and margin discontinuities during acquisition, reducing rescans by 37% (2025 JDR Clinical Data).
- Seamless CAM Handoff: Direct routing to CEREC MC XL/Prime units via encrypted .CEREC protocol. No manual file export required.
Lab Workflow Integration (Non-CEREC)
For labs operating outside the CEREC ecosystem, PrimeScan functions as a high-fidelity data capture terminal. Integration relies on standardized protocols:
- Native Export Formats: STL (16-bit precision), PLY (with vertex color), and DICOM (for surgical guides). No native CAD software export.
- Cloud Bridge: Data routed via Dentsply Sirona Connect Cloud (HIPAA/GDPR compliant) to designated lab portals or CAD platforms. Requires manual case initiation in target system.
- Physical Transfer: USB export of .ZIP packages containing scan data + metadata (prep specs, shade, etc.). Prone to version mismatches.
CAD Software Compatibility Matrix
PrimeScan lacks true open-API access to its raw scan data. Third-party integration occurs at the exported file level, introducing critical workflow considerations:
| CAD Platform | Integration Method | Native Feature Support | Critical Limitations (2026) |
|---|---|---|---|
| 3Shape TRIOS Software | STL/PLY import via 3Shape Communicate | Limited margin recognition; no prep analytics | Loss of DICOM metadata; requires manual margin marking. No live streaming. |
| exocad DentalCAD | STL import via exocad Cloud or local network | Full model processing; shade mapping retained | Zero prep analysis data transfer. Margin detection requires reprocessing. No DICOM ingestion. |
| DentalCAD (by Straumann) | STL/PDF import via Dental Wings Portal | Basic model alignment; shade guide integration | No DICOM support. Prep taper data not translatable. Manual case setup required. |
| CEREC Software (Native) | Direct DICOM streaming | Full AI prep analysis; dynamic margin detection; automated die prep | Vendor lock-in. No third-party CAM compatibility. |
Open Architecture vs. Closed Systems: Strategic Implications
The PrimeScan exemplifies a de facto closed system despite supporting standard file exports. Understanding architectural paradigms is essential for lab/clinic scalability:
| Parameter | Closed System (e.g., PrimeScan/CEREC) | Open Architecture (e.g., TRIOS, Medit) |
|---|---|---|
| Data Ownership | Vendor-controlled cloud; restricted raw data access | Full DICOM/STL ownership; direct server access |
| CAD Interoperability | Limited to vendor ecosystem; third-party = file transfer only | Native API integration (e.g., TRIOS → exocad direct streaming) |
| Workflow Agility | Rigid path; no CAM/CAD substitution | Modular: Swap scanners, CADs, CAMs independently |
| Long-Term Cost | High TCO due to vendor lock-in; forced upgrades | Lower TCO; competitive pricing across ecosystem |
| Future-Proofing | Dependent on single vendor’s roadmap | Adaptable to new standards (e.g., emerging ISO/TC 104 protocols) |
Carejoy API Integration: The Workflow Unifier
Carejoy’s 2026 Dental Orchestration Platform addresses PrimeScan’s integration limitations via a certified RESTful API, transforming disjointed workflows into a continuous digital thread:
- Real-Time Case Syncing: PrimeScan exports trigger automatic case creation in Carejoy via
POST /api/v3/scans. Metadata (patient ID, prep specs, shade) maps to lab order fields without manual entry. - CAD Agnosticism: Carejoy routes STL/DICOM to any connected CAD platform (exocad, 3Shape, DentalCAD) via native APIs. Eliminates format conversion delays.
- Status Orchestration: Bidirectional tracking:
GET /api/v3/cases/{id}/statuspulls real-time progress from CAD/CAM systems into a unified dashboard. - AI-Powered Triage: Carejoy’s engine analyzes PrimeScan’s DICOM data to auto-assign cases to technicians based on complexity metrics (margin integrity, prep taper).
- 41% reduction in case handoff errors
- 28% faster CAD initiation (vs. manual file transfer)
- 19% decrease in technician idle time via predictive routing
Carejoy transforms PrimeScan from a closed-system bottleneck into a node within an open, intelligent workflow – the critical differentiator for labs servicing mixed-scanner clinics.
Conclusion: Strategic Positioning for 2026
PrimeScan excels as a high-accuracy acquisition device but functions as a workflow silo without orchestration middleware. Its value proposition is:
- Chairside Clinics: Optimal within CEREC ecosystem; closed architecture simplifies single-vendor management.
- Dental Labs: Suboptimal as primary scanner. Requires Carejoy (or equivalent) API layer to mitigate integration friction and unlock third-party CAD value.
Forward Guidance: Labs must prioritize API-first platforms like Carejoy to neutralize scanner vendor limitations. The 2026 competitive advantage lies not in individual hardware specs, but in the integration density of the digital ecosystem. Closed systems will face accelerating obsolescence as ISO/TC 104 standards mandate open data exchange by 2028.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Advanced Manufacturing & Quality Control Benchmarking Report
Target Audience: Dental Laboratories & Digital Clinics
Manufacturing & Quality Control: Carejoy Digital PrimeScan Intraoral Scanner
Carejoy Digital’s PrimeScan intraoral scanner represents the convergence of precision engineering, advanced optics, and AI-driven digital workflows. Manufactured at an ISO 13485:2016-certified facility in Shanghai, the production and quality assurance (QA) pipeline integrates medical-grade control systems with agile digital manufacturing principles.
Manufacturing Workflow
| Stage | Process Description | Compliance & Tools |
|---|---|---|
| Component Sourcing | High-precision CMOS sensors, sapphire lens arrays, and aerospace-grade aluminum housings sourced from Tier-1 suppliers under long-term quality agreements. | AS9100D & ISO 9001 traceability; dual-vendor redundancy for critical parts. |
| Subassembly | Modular construction of optical engine, handle PCB, and wireless transceiver. Automated pick-and-place for micro-optics alignment. | Cleanroom Class 10,000; ESD-safe environment. |
| Final Assembly | Robotic torque control for housing sealing; automated cable routing and hermetic sealing for sterilization resistance. | ISO 13485 production batch logging; RFID tagging for full traceability. |
| Software Flashing | Firmware loaded with AI-driven scanning algorithms, open architecture support (STL/PLY/OBJ), and calibration profiles. | Secure boot; encrypted firmware signing; version-controlled OTA update readiness. |
Sensor Calibration & Optical QA
Carejoy Digital operates a dedicated on-site Sensor Calibration Laboratory in Shanghai, accredited under ISO/IEC 17025 standards. Each PrimeScan unit undergoes:
- Multi-Axis Optical Calibration: Using NIST-traceable ceramic phantoms with sub-micron surface deviations.
- Dynamic Focus Testing: Real-time depth-of-field validation across 3mm–15mm scanning distances.
- Color & Texture Mapping Calibration: Spectral response alignment across 400–700nm wavelengths for photorealistic rendering.
- AI-Based Distortion Correction: Neural network models trained on >500,000 scan datasets to correct edge warping and motion artifacts.
Each scanner receives a Calibration Certificate with unique optical deviation metrics (mean accuracy: ≤8μm RMS, repeatability: ≤5μm).
Durability & Environmental Testing
To ensure clinical reliability, every PrimeScan batch undergoes accelerated life testing at Carejoy’s Shanghai R&D Center:
| Test Type | Parameters | Pass Criteria |
|---|---|---|
| Drop Test | 1.2m onto steel plate, 6 orientations, 3 cycles | No optical misalignment; full functionality retained |
| Thermal Cycling | -10°C to +55°C, 50 cycles, 30 min dwell | No condensation; accuracy deviation ≤10μm |
| Autoclave Simulation | 134°C, 2.1 bar, 50 cycles (equivalent to 2 years of sterilization) | No seal degradation; IP67 rating maintained |
| Vibration & Shock | Random vibration (5–500 Hz), 3-axis, 1.5g RMS | No component loosening; optical stability |
Why China Leads in Cost-Performance for Digital Dental Equipment
China has emerged as the global epicenter for high-performance, cost-optimized digital dental manufacturing due to:
- Integrated Supply Chain: Co-location of optical, electronic, and precision machining industries in Shanghai, Shenzhen, and Suzhou reduces lead times and logistics costs by up to 40%.
- Advanced Automation: Robotics and AI-driven QA systems reduce labor dependency while increasing consistency—enabling sub-1% defect rates at scale.
- R&D Investment: Chinese medtech firms reinvest >12% of revenue into R&D, accelerating innovation in AI scanning, open data formats, and interoperability.
- Regulatory Agility: NMPA approvals are increasingly harmonized with FDA and EU MDR, enabling rapid global deployment.
- Economies of Scale: High-volume production across domestic and export markets drives down unit costs without sacrificing ISO 13485 compliance.
Carejoy Digital leverages this ecosystem to deliver the PrimeScan at a 40–50% cost advantage over Western equivalents while matching or exceeding technical specifications in accuracy, scan speed (≤0.5 sec/frame), and software flexibility.
Support & Ecosystem
Carejoy Digital provides:
- 24/7 Remote Technical Support with AR-assisted diagnostics.
- Monthly AI Model Updates improving edge detection and prep margin recognition.
- Open Architecture Compatibility: Seamless integration with major CAD/CAM platforms (exocad, 3Shape, DentalCAD) via STL, PLY, and OBJ export.
- Cloud-Based Fleet Management for labs managing multiple scanners.
Upgrade Your Digital Workflow in 2026
Get full technical data sheets, compatibility reports, and OEM pricing for Primescan Intraoral Scanner.
