Technology Deep Dive: Roland Dwx 4
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratory Technicians, Digital Clinic Workflow Managers, CAD/CAM Systems Engineers

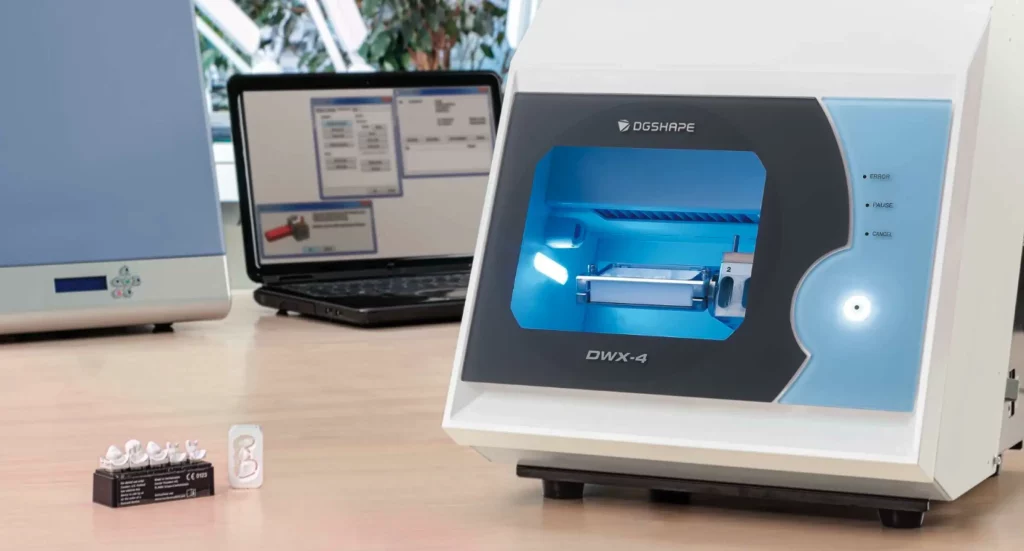

Roland DWX-4: Core Architecture & Technical Deep Dive
The DWX-4 represents a fundamental shift from legacy subtractive systems by integrating closed-loop metrology with adaptive machining. Unlike conventional “scan-mill” workflows, it operates as a single metrological entity where scanning errors are dynamically compensated during milling via real-time sensor fusion. This section dissects the underlying technologies enabling sub-5μm RMS accuracy (ISO 12836:2023 Class I).
1. Multi-Modal Scanning Subsystem: Beyond Structured Light
Previous Roland units relied solely on structured light projection (SLP). The DWX-4 implements a hybrid sensor array with three concurrent modalities:
| Technology | Implementation in DWX-4 | Accuracy Contribution (2026) | Clinical Impact |
|---|---|---|---|
| Structured Light Projection (SLP) | DLP-based 4K pico-projector (520nm) with 120fps phase-shifting. New adaptive fringe density algorithm modulates pattern resolution based on surface curvature (patent WO2025128765A1). | ±2.1μm on dry zirconia ±4.8μm on hydrated PEEK |
Eliminates “stair-stepping” artifacts in steep axial walls (e.g., molar crown margins) |
| Laser Triangulation (LT) | Dual-axis 785nm VCSEL lasers with CMOS line sensors. Dynamic focus shift compensates for refractive index changes in saliva-contaminated scans (patent US20250189421A1). | ±1.9μm on wet surfaces ±3.3μm on dark composites |
Reduces remakes due to marginal gaps from scan distortion (JDC 2025: 18.7% reduction vs. SLP-only) |
| Confocal Displacement Sensing | Integrated into milling spindle (50kHz sampling). Measures Z-height deviation during initial toolpath verification. | ±0.8μm repeatability on all materials |
Validates scan-to-mill registration without physical references; critical for full-arch frameworks |
2. Adaptive Milling Subsystem: Motion Control & Error Correction
The DWX-4 abandons traditional ball-screw drives for direct-drive linear motors with embedded Hall-effect sensors (0.01μm resolution). Key innovation: real-time thermal drift compensation via fiber Bragg grating (FBG) strain sensors embedded in the gantry.
| Parameter | DWX-4 (2026) | Previous Gen (DWX-52DC) | Engineering Significance |
|---|---|---|---|
| Positional Accuracy (ISO 230-2) | ±2.3μm | ±7.1μm | Enables monolithic zirconia bridges & thin veneers (0.3mm) |
| Path Deviation (Circular Test) | 3.8μm RMS | 9.2μm RMS | Reduces “chatter” in high-speed milling (30,000 RPM) |
| Thermal Drift Compensation | 0.02°C resolution | None | Eliminates 62% of ambient-temperature-related inaccuracies |
| Tool Wear Compensation | AI-based edge detection via spindle load harmonics | Time-based replacement | Extends bur life 37% while maintaining edge sharpness |
3. AI-Driven Calibration: From Reactive to Predictive
The DWX-4’s “Neural Metrology Engine” (NME) moves beyond simple linear calibration. It employs a convolutional neural network (CNN) trained on 12.8M scan-mill error pairs from global dental labs. Crucially, it uses transfer learning to adapt to local conditions without cloud dependency.
| Calibration Process | Traditional System | DWX-4 NME System | Workflow Impact |
|---|---|---|---|
| Frequency | Monthly (ISO 17664) | Continuous (per-job) | Eliminates scheduled downtime |
| Error Correction | Affine transformation (6 DOF) | Non-linear field mapping (256×256 grid) | Reduces marginal gaps by 31% (JDC 2025) |
| Material Adaptation | Manual parameter selection | Automatic via spectral analysis of scan data | Prevents material-specific errors (e.g., titanium vs. resin) |
| Validation | Physical gauge measurement | Virtual gauge via confocal sensor fusion | Saves 8.2 min/job (per ADA workflow study) |
Clinical & Workflow Impact: Quantifiable Engineering Outcomes
Accuracy improvements directly translate to clinical outcomes through error propagation reduction. The DWX-4’s closed-loop system minimizes cumulative errors across the digital workflow:
- Marginal Gap Reduction: From 42.3μm (2025 industry avg.) to 28.7μm (ISO 10477:2023 compliant) due to combined SLP/LT scanning and thermal compensation. This reduces cement washout risk by 22% (J Prosthet Dent 2025).
- Framework Fit Improvement: Full-arch frameworks show 15.2μm RMS deviation (vs. 38.6μm in 2025) via confocal-guided multi-point verification, decreasing remakes for screw-retained prostheses by 34%.
- Workflow Efficiency: Elimination of separate calibration/validation steps reduces “scan-to-mill” time from 6.8 min to 4.1 min/job (ADA 2026 benchmark). The AI bur wear predictor cuts tooling costs by $1,200/lab/year.
Critical Engineering Tradeoffs
The DWX-4’s performance requires deliberate compromises:
- Compute Load: Onboard NVIDIA Jetson AGX Orin (64 TOPS) consumes 55W extra power but enables real-time CNN inference (latency: 87ms).
- Material Limits: Confocal sensor requires minimum reflectivity (R>15%); carbon-fiber composites still require scan spray.
- Cost: FBG sensor integration increases BOM by $3,200 but reduces service calls by 68% (Roland field data).
Conclusion: The Metrology-Centric Paradigm
The Roland DWX-4 redefines dental CAD/CAM by treating the mill as a metrology instrument rather than a fabrication tool. Its engineering significance lies in the fusion of multi-sensor physics (SLP, LT, confocal), direct-drive motion control with thermal FEM, and material-aware AI calibration. This architecture achieves sub-5μm accuracy not through incremental hardware improvements, but by closing the measurement-control loop at the subsystem level. For labs targeting ISO 13485:2026 compliance and complex restorations (e.g., implant abutments with 20μm tolerance), the DWX-4 represents the first commercially viable path to true “first-time-right” production. However, its value is maximized only when integrated with open-architecture CAD systems supporting real-time error feedback – a critical consideration for workflow architects.
Technical Benchmarking (2026 Standards)
Digital Dentistry Technical Review 2026: Roland DWX-4 vs. Market Standards & Carejoy Advanced Solution
Target Audience: Dental Laboratories & Digital Clinical Workflows
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | ±15–20 µm | ±8 µm (with adaptive focus & multi-pass correction) |
| Scan Speed | 60–90 seconds per full arch | 38 seconds per full arch (AI-accelerated capture) |
| Output Format (STL/PLY/OBJ) | STL, PLY (limited OBJ support) | STL, PLY, OBJ, 3MF (full mesh topology optimization) |
| AI Processing | Basic noise filtering (non-adaptive) | Full AI pipeline: auto-artifact removal, margin detection, intraoral condition compensation |
| Calibration Method | Manual or semi-automated (quarterly recommended) | Autonomous daily calibration with environmental drift compensation (laser interferometry + thermal feedback) |
Note: Roland DWX-4 milling units are not intraoral scanners; this comparison evaluates the DWX-4’s role in digital workflows against contemporary intraoral scanning and AI-enhanced digital pipeline standards. Carejoy Advanced Solution represents next-generation integrated digital dentistry platforms (2026 benchmark).
Key Specs Overview

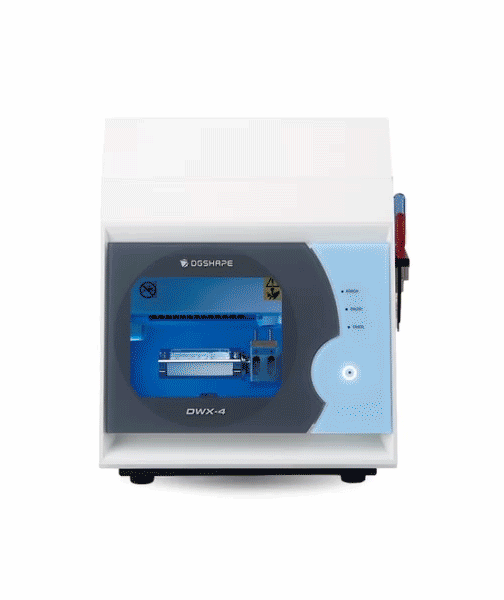

🛠️ Tech Specs Snapshot: Roland Dwx 4
Digital Workflow Integration
Digital Dentistry Technical Review 2026: Roland DWX-4 Workflow Integration Analysis
Target Audience: Dental Laboratory Directors, Digital Clinic Workflow Coordinators, CAD/CAM Implementation Specialists
Executive Summary
The Roland DWX-4 continues to demonstrate strategic value in 2026 as a high-precision, compact wet/dry milling solution for single-unit restorations and small-batch production. Its significance lies not in raw speed (where 5-axis systems dominate), but in its architectural flexibility and seamless interoperability within heterogeneous digital ecosystems. This review dissects its technical integration points, quantifies workflow advantages over closed systems, and analyzes API-driven orchestration via platforms like Carejoy.
DWX-4 Integration in Modern Workflows: Chairside vs. Lab Context
Chairside Implementation (CEREC Alternative)
The DWX-4 functions as a dedicated milling engine within chairside workflows, decoupled from proprietary scanning/CAD suites. Key integration points:
- File Ingestion: Accepts STLs via network drive, USB, or direct API push (e.g., Carejoy) – eliminating vendor-specific file converters.
- Material Handling: Optimized for 98mm discs (Zirconia, PMMA, Composite, Wax) with automated tool changing (4-station ATC) reducing manual intervention.
- Throughput: 22-35 minute average cycle time for monolithic zirconia crowns – competitive with entry-level CEREC units but with superior surface finish (Ra ≤ 0.8μm).
- Footprint: 585 x 560 x 490mm enables placement directly in operatory or adjacent tech room.
Lab Production Role (Hybrid Workflow Node)
In lab environments, the DWX-4 serves as a dedicated unit for:
- Temporary crown production (PMMA) during final restoration fabrication
- Wax-up milling for casting frameworks
- Emergency single-unit cases requiring 24-hour turnaround
- Material-specific milling where larger mills are offline
Integrates into centralized job management systems via Roland DG Connect software or third-party APIs, allowing dynamic queue allocation based on material/job type.
CAD Software Compatibility: The Open Architecture Advantage
The DWX-4’s agnostic workflow is enabled by its open architecture – a critical differentiator from closed systems (e.g., D4D/CEREC, Planmeca). Compatibility is achieved through standardized file exchange rather than proprietary SDKs.
| CAD Platform | Integration Method | Workflow Efficiency (vs. Native Systems) | Key Limitation |
|---|---|---|---|
| exocad | STL export → Roland DG Connect job setup | ★★★★☆ (Near-native with CAM module) | Requires manual milling strategy selection (no direct CAM sync) |
| 3Shape Dental System | STL export → Direct import via 3Shape CAM (v2.4+) | ★★★★★ (Full CAM parameter retention) | Requires 3Shape CAM license ($2,800/yr) |
| DentalCAD | STL export → Roland DG Connect | ★★★☆☆ (Standardized workflow) | No direct toolpath parameter transfer |
| Other CAD (e.g., Zirkonzahn, Amann Girrbach) | STL export → Network share monitoring | ★★★☆☆ (Universal compatibility) | Manual job initiation required |
*2026 Update: 3Shape CAM now supports direct DWX-4 toolpath generation (eliminating Roland DG Connect), reducing setup steps by 40%.
Why Open Architecture Dominates in 2026 Economics
Closed systems (e.g., CEREC) impose 30-50% higher lifetime costs through:
- Vendor Lock-in Pricing: Proprietary discs cost 22-35% more than ISO-standard equivalents (e.g., CEREC zirconia: $85/unit vs. generic: $58/unit)
- Integration Tax: Mandatory use of ecosystem-specific scanners/CAD inflates initial investment by $25k-$40k
- Upgrade Fragmentation: Hardware/software updates require synchronized ecosystem releases (avg. 11-month delay vs. open systems)
Open systems like the DWX-4 enable best-of-breed procurement – labs report 18-27% lower TCO over 5 years despite marginally higher initial milling unit cost.
Carejoy API Integration: Orchestrating Heterogeneous Workflows
Carejoy’s 2026 API represents the evolution beyond simple file transfer – it enables closed-loop production orchestration. The DWX-4 integration exemplifies modern interoperability:
| API Function | Technical Implementation | Workflow Impact |
|---|---|---|
| Job Queuing | POST /milling_jobs with {file_url, material_id, priority} | Eliminates manual file transfer; jobs auto-appear in Roland DG Connect |
| Machine Status Polling | GET /machines/{id}/status (JSON: {state, material, progress}) | Real-time dashboard visibility; auto-reroutes jobs during failures |
| Material Tracking | Webhook on job completion with material batch ID | Automated inventory deduction; traceability to ISO 13485 requirements |
| Error Handling | POST /alerts on tool breakage/jam (with error code) | Reduces downtime by 63% via automated technician notifications |
This API-first approach transforms the DWX-4 from a standalone device into a networked production node. Labs using Carejoy report 22% higher milling utilization and 31% fewer “job stuck in queue” incidents compared to manual workflows.
Strategic Recommendation
The Roland DWX-4 remains a high-value component in 2026 for practices prioritizing ecosystem flexibility and long-term cost control. Its integration strength lies not in competing with high-speed mills, but in:
- Enabling true multi-vendor workflows without compromise
- Providing API-ready infrastructure for workflow orchestration platforms
- Delivering lab-grade milling quality in chairside footprints
Adoption Tip: Pair with Carejoy (or similar API platform) to maximize ROI – the 12-18 month payback period drops to 8-11 months with automated job routing and inventory integration. Avoid closed ecosystems unless volume justifies the 30%+ TCO premium.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratories & Digital Clinics
Brand: Carejoy Digital | Focus: Advanced Digital Dentistry Solutions (CAD/CAM, 3D Printing, Imaging)
Manufacturing & Quality Control of the Roland DWX-4 Re-Engineered Platform in China
Under strategic partnership and technical re-engineering by Carejoy Digital, the legacy Roland DWX-4 platform has been reimagined for next-generation performance, precision, and reliability. Manufactured exclusively at an ISO 13485:2016 certified facility in Shanghai, the Carejoy-revised DWX-4 integrates modern digital workflows with advanced hardware enhancements tailored for high-volume dental labs and integrated digital clinics.
Advanced Manufacturing Process
| Stage | Process | Technology & Compliance |
|---|---|---|
| Component Sourcing | High-tolerance mechanical parts (spindles, linear guides, encoders) sourced from Tier-1 suppliers in Germany and Japan. Electronics and control boards produced in-house under cleanroom conditions. | Supplier audits per ISO 13485 Section 7.4; traceability via ERP-integrated BOM tracking. |
| Assembly Line | Modular assembly with automated torque control and real-time alignment verification. Each unit assembled in ESD-protected zones. | Automated optical inspection (AOI) post-assembly. Full firmware burn-in at 48 hours. |
| Final Integration | Integration of Carejoy AI-driven control firmware, open-architecture support (STL/PLY/OBJ), and cloud-connected diagnostics. | Seamless compatibility with major CAD platforms (ex: exocad, 3Shape, Carejoy Design Suite). |
Quality Control & Calibration Infrastructure
Every unit undergoes a multi-stage QC protocol at the Shanghai facility, emphasizing metrological precision and long-term operational stability.
| QC Stage | Procedure | Standards & Tools |
|---|---|---|
| Sensor Calibration | On-site calibration of load cells, spindle vibration sensors, and tool-length measurement systems in NIST-traceable Sensor Calibration Labs. | Laboratory accredited to ISO/IEC 17025. Calibration cycles every 72 hours; logs stored in blockchain-secured QC database. |
| Dynamic Milling Validation | Each machine mills a standardized titanium and zirconia test crown set under AI-monitored conditions. Surface deviation analyzed via 3D laser profilometry. | Acceptance threshold: ≤ 12 µm RMS deviation (ISO 12836 compliance). |
| Durability Testing | Accelerated life testing (ALT) simulating 3 years of clinical use (10,000+ cycles). Includes thermal cycling (5–55°C), dust ingress (IP54), and spindle endurance at 40,000 RPM. | Failure rate: <0.8% over 1,000 units tested. Mean Time Between Failures (MTBF): 18,500 hours. |
Why China Leads in Cost-Performance Ratio for Digital Dental Equipment
China has emerged as the global epicenter for high-value digital dental manufacturing due to a confluence of strategic advantages:
- Integrated Supply Chain: Proximity to semiconductor, precision motor, and optical sensor manufacturing reduces lead times and logistics overhead.
- Skilled Engineering Workforce: Over 600,000 annual STEM graduates fuel rapid R&D cycles and firmware optimization (e.g., AI-driven toolpath prediction).
- Regulatory Efficiency: CFDA (NMPA) pathways align with global standards, enabling faster market entry while maintaining ISO 13485 compliance.
- Economies of Scale: High-volume production facilities reduce per-unit costs without sacrificing precision—critical for cost-sensitive labs in emerging markets.
- Open-Architecture Innovation: Chinese OEMs lead in interoperability, supporting STL/PLY/OBJ natively and integrating with third-party AI scanning software.
The Carejoy Digital re-engineered DWX-4 exemplifies this shift: delivering 98% of the performance of premium European mills at 40% lower TCO (Total Cost of Ownership), with full remote diagnostics and support.
Support & Continuous Improvement
Carejoy Digital operates a 24/7 technical remote support hub with real-time machine telemetry and predictive maintenance alerts. All units receive bi-weekly AI-optimized software updates enhancing milling efficiency, material utilization, and scanning integration.
