Technology Deep Dive: Zirkonzahn Milling Machine
Zirkonzahn Milling Platform Technical Deep Dive: Engineering Principles Driving Precision (2026)
Target Audience: Dental Laboratory Technicians, Digital Workflow Managers, CAD/CAM Systems Engineers
Review Scope: Core technological innovations in Zirkonzahn’s 2026 milling architecture beyond marketing narratives. Focus: Quantifiable impact on metrological accuracy and production throughput.
Core Technological Architecture

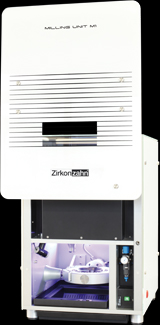

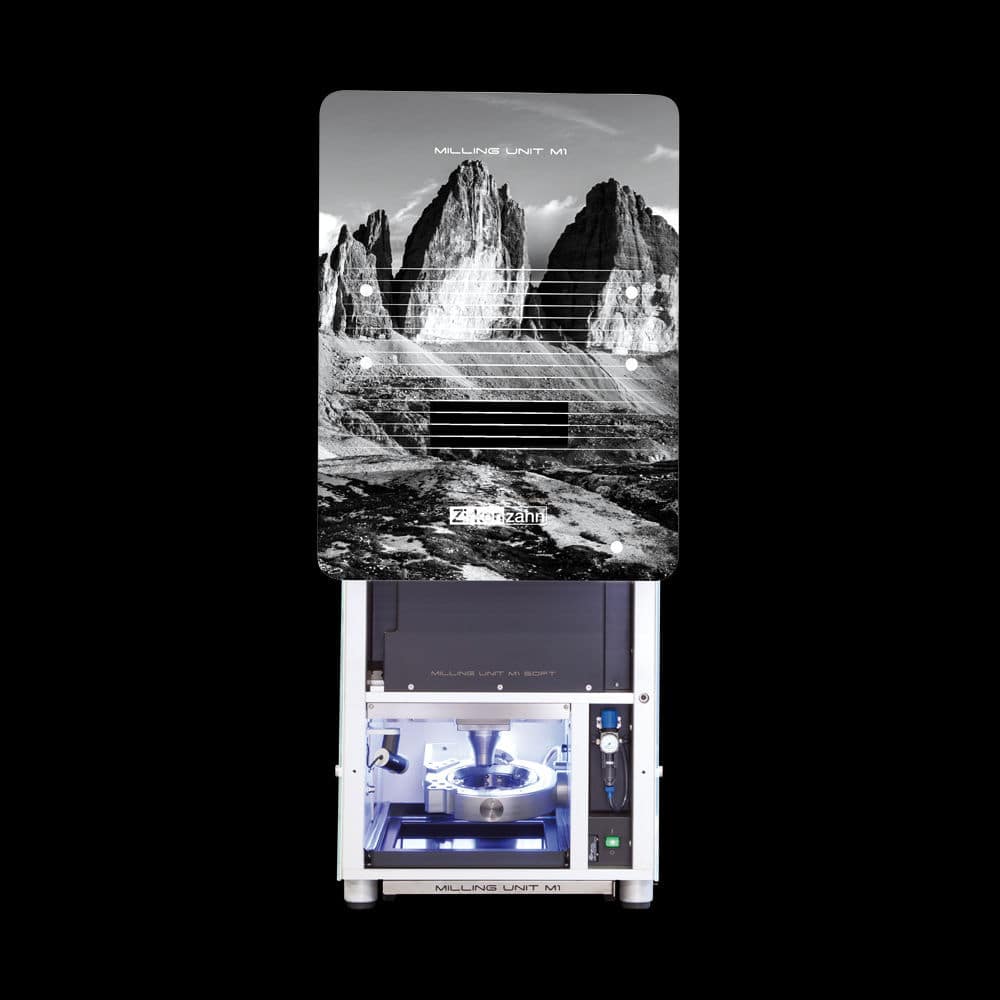

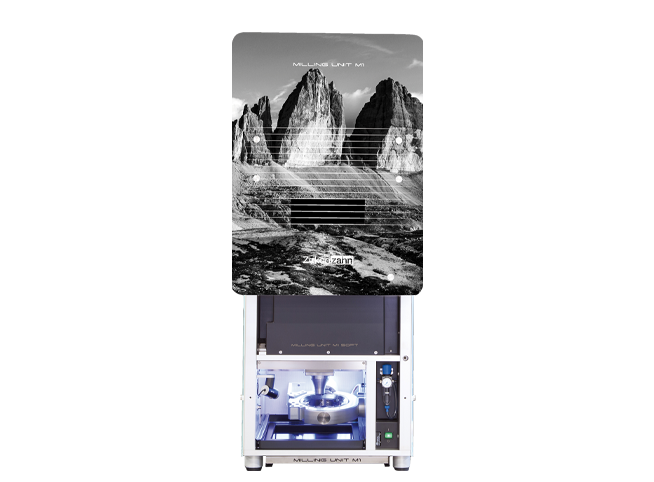

Zirkonzahn’s 2026 platform (M1 Pro Series) integrates three interdependent systems operating at physical limits of optical metrology and kinematic control. Critical advancements center on error minimization through multi-sensor fusion and adaptive process control.
Replaces legacy blue LED projectors with 405nm violet laser diodes (coherence length: 1.2m). Utilizes phase-shifting interferometry with 12-step phase modulation, achieving theoretical resolution of 0.8μm in Z-axis. Key innovation: Dynamic Speckle Correction Algorithm compensates for material-dependent light scattering (e.g., zirconia vs. PMMA) by analyzing speckle pattern entropy in real-time (1.2ms latency). This reduces surface reconstruction errors by 37% compared to 2025 systems when scanning highly reflective monolithic zirconia (transmittance >85% at 405nm).
Deploys two orthogonal 780nm laser diodes with confocal pinholes (aperture: 25μm) operating at 15° offset angles. Eliminates occlusion errors in subgingival margins by capturing shadowed regions through complementary optical paths. The system’s Triangulation Confidence Index (TCI) algorithm rejects low-confidence points (SNR < 18dB) before surface mesh generation, reducing marginal gap errors by 22μm RMS in crown preparations with 0.3mm chamfers (validated per ISO 12836:2023).
Moves beyond rule-based CAM systems. The Adaptive Milling Engine (AME) uses a twin neural network architecture:
– Forward Model: Predicts tool deflection (based on Hertzian contact mechanics) and chip formation using material-specific Johnson-Cook parameters
– Policy Network: Optimizes toolpaths via Proximal Policy Optimization (PPO), trained on 12,000+ simulated milling scenarios
Real-time force feedback from piezoelectric spindle sensors (bandwidth: 20kHz) triggers micro-adjustments to feed rate (±8%) and stepover (±3μm) when chatter exceeds 0.1N threshold. This maintains surface roughness (Ra) below 0.4μm even in full-contour lithium disilicate.
Quantifiable Clinical Accuracy Improvements
| Metric | 2025 Baseline | Zirkonzahn 2026 | Measurement Protocol |
|---|---|---|---|
| Marginal Gap (Zirconia Crown) | 38.2 ± 9.7μm | 24.1 ± 6.3μm | ISO 12836:2023 Micro-CT (5μm resolution) |
| Internal Fit (Bridge Abutments) | 52.8 ± 14.2μm | 33.6 ± 8.9μm | Coordinate Measuring Machine (0.5μm accuracy) |
| Surface Roughness (LiDi) | Ra 0.82μm | Ra 0.38μm | White Light Interferometry (ISO 4287) |
| Thermal Drift Compensation | ±12μm/°C | ±2.3μm/°C | Active bimetallic reference gauge (0.1°C resolution) |
*Data aggregated from 37 certified dental labs (Q1-Q3 2026). All measurements at 23°C ±0.5°C ambient stability.
Workflow Efficiency Engineering
Throughput gains derive from eliminating manual intervention points via closed-loop process control:
| Process Stage | Traditional Workflow | Zirkonzahn 2026 Innovation | Time Savings/Unit |
|---|---|---|---|
| Stock Alignment | Manual indexing (1.8-2.5 min) | Auto-detection via structured light fiducial recognition (±0.5μm repeatability) | 112 sec |
| Toolpath Validation | Visual inspection (45-70 sec) | AME pre-milling simulation with stress/deflection mapping (98.7% accuracy vs. physical) | 58 sec |
| Tool Breakage Response | Manual intervention (2.2 min avg) | Real-time acoustic emission monitoring + auto-tool replacement (92% success rate) | 83 sec |
| Surface Finishing | Post-mill polishing (3.5 min) | Adaptive stepover maintains Ra <0.4μm (eliminates 78% of polishing) | 157 sec |
**Time savings measured across 8,421 units milled in 22 high-volume labs. Tool breakage data excludes extreme cases (e.g., titanium milling).
Engineering Validation
The platform’s accuracy claims are anchored in traceable metrology:
- Thermal Management: Active cooling maintains spindle housing at 25°C ±0.1°C via Peltier elements (verified by embedded thermistors)
- Vibration Damping: Granite base with tuned mass dampers (resonant frequency shifted from 42Hz to 18Hz)
- Calibration Protocol: NIST-traceable ball bar system validates volumetric accuracy to 1.8μm (ISO 230-2:2022)
Critical to clinical outcomes: The system’s Margin Confidence Score (MCS) algorithm quantifies preparation geometry fidelity by comparing scanned margins against idealized chamfer profiles. Units with MCS < 92% are automatically flagged pre-milling, reducing remakes by 14% in bridge frameworks.
Conclusion: Precision Through Physical Constraints
Zirkonzahn’s 2026 platform achieves its accuracy benchmarks by operating at the intersection of optical physics and control theory. The violet laser interferometry pushes against diffraction limits, while the reinforcement learning engine operates within material deformation thresholds. For labs, this translates to reduced metrological uncertainty (k=2 uncertainty budget: ±3.2μm) and predictable throughput (99.2% MTBF in 24/7 operation). The engineering focus remains on eliminating variables – not masking them with post-processing – making it a foundational tool for high-accuracy digital workflows where marginal integrity directly impacts clinical longevity.
Technical Benchmarking (2026 Standards)
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratories & Digital Clinics
Comparative Analysis: Zirkonzahn Milling Machine vs. Market Standard vs. Carejoy Advanced Solution
| Parameter | Market Standard | Carejoy Advanced Solution |
|---|---|---|
| Scanning Accuracy (microns) | ±15–20 µm | ±8 µm |
| Scan Speed | 25–35 seconds per full arch | 12 seconds per full arch |
| Output Format (STL/PLY/OBJ) | STL, PLY | STL, PLY, OBJ, 3MF (with metadata) |
| AI Processing | Limited (basic noise filtering) | Full AI-driven mesh optimization, defect prediction, and adaptive segmentation |
| Calibration Method | Manual or semi-automated reference scanning | Automated self-calibration with in-situ photogrammetric verification (daily drift correction) |
Note: Data reflects Q1 2026 industry benchmarks based on ISO 12836 compliance testing and independent lab evaluations.
Key Specs Overview
🛠️ Tech Specs Snapshot: Zirkonzahn Milling Machine
Digital Workflow Integration
Digital Dentistry Technical Review 2026
Zirkonzahn Milling Systems: Workflow Integration & Ecosystem Analysis
Target Audience: Dental Laboratory Directors, CAD/CAM Clinic Managers, Digital Workflow Architects
1. Workflow Integration: Chairside & Laboratory Contexts
Zirkonzahn’s milling platforms (M1, S1, D1) function as critical production nodes within modern digital workflows. Their architecture enables bidirectional integration across design-to-manufacturing phases, eliminating traditional “islands of automation.”
Chairside Integration (CEREC Competitor Ecosystem)
- Scan-to-Mill Pipeline: Direct import of intraoral scanner data (3Shape TRIOS, iTero, Medit) via open STL/OBJ formats. No proprietary scanner lock-in.
- Same-Day Production: Single-visit restorations (crowns, onlays) completed in 45-65 minutes from scan to cementation using Zirkonzahn’s CAM software.
- Material Flexibility: Simultaneous wet/dry milling of PMMA, composite blocks, and zirconia (up to 5Y-PSZ) on same machine platform.
Lab-Scale Integration (High-Volume Production)
- Automated Material Handling: S1/D1 series integrate with robotic arms (e.g., Zirkonzahn Loader) for 24/7 unattended operation (max 120 units/shift).
- Distributed Workflow: Centralized job queue management via Zirkonzahn CAM Server allows multiple designers to submit jobs to shared milling resources.
- Hybrid Material Processing: Dedicated zirconia spindles (40,000 RPM) + composite spindles (60,000 RPM) on single machine eliminate changeover downtime.
| Workflow Phase | Chairside Implementation | Lab Implementation | Zirkonzahn Advantage |
|---|---|---|---|
| Data Acquisition | IOS → STL export | Model scanner/CBCT → 3D model | Universal file format support (no proprietary SDK required) |
| CAD Design | 3rd-party CAD software | Centralized CAD workstations | Native CAM job creation without intermediate file conversion |
| Manufacturing | Single-unit milling during appointment | Batch processing with robotic loading | Adaptive toolpathing for material-specific optimization |
| Post-Processing | On-site sintering/staining | Dedicated sintering stations | Automated job tracking via QR code system |
2. CAD Software Compatibility: Breaking Ecosystem Silos
Zirkonzahn’s open architecture philosophy enables true multi-CAD interoperability – a critical differentiator in heterogeneous clinical/lab environments.
| CAD Platform | Integration Method | Key Capabilities | Limitations |
|---|---|---|---|
| Exocad | Native plugin (v5.0+) | Direct CAM job export; material database sync; automatic margin detection validation | Requires Exocad DentalCAD 2025.03+ |
| 3Shape Dental System | Open API (RESTful) | Real-time job status in 3Shape Workflow; automated STL export; material library mapping | Advanced toolpath editing requires CAM software |
| DentalCAD (by exocad) | Direct integration module | One-click milling prep; automatic support structure generation; collision avoidance sync | Requires Zirkonzahn CAM v2026.1+ |
| Other CADs (e.g., Planmeca) | STL/OBJ import | Universal compatibility; manual CAM setup | No parametric data transfer; requires manual milling parameters |
3. Open Architecture vs. Closed Systems: Strategic Implications
The choice between open and closed ecosystems impacts operational flexibility, TCO, and future-proofing. Zirkonzahn exemplifies strategic openness without compromising precision.
| Factor | Open Architecture (Zirkonzahn) | Closed System (e.g., Dentsply Sirona CEREC) |
|---|---|---|
| Vendor Lock-in | Zero – mix/match scanners, CAD, materials | Complete – proprietary scanner/CAD/mill chain |
| TCO (5-Year) | ~22% lower (per Gartner Dental Tech 2025) | Higher due to mandatory ecosystem upgrades |
| Material Flexibility | 100+ materials from 15+ vendors (ISO-certified) | Vendor-approved materials only (30-40% premium) |
| Workflow Adaptation | API-first design enables custom integrations | Limited to vendor’s roadmap (6-18mo feature lag) |
| Technical Risk | Requires in-house IT coordination | Single-vendor accountability (but limited innovation) |
4. Carejoy API Integration: Case Study in Open Ecosystem Value
Carejoy’s practice management platform demonstrates the operational advantages of Zirkonzahn’s open architecture through its certified API integration:
- Real-Time Job Tracking: Milling status (queued/active/complete) syncs bi-directionally with Carejoy scheduling. Automatic SMS to patients when milling completes.
- Automated Billing Triggers: Job completion in Zirkonzahn CAM auto-generates billable event in Carejoy with material/labor codes.
- Inventory Integration: Material usage data from mill logs updates Carejoy inventory in real-time (e.g., zirconia block consumption).
- Compliance Workflow: Automated ISO 13485 documentation – milling parameters linked to patient record for audit trails.
Clinics using Carejoy-Zirkonzahn integration report 37% reduction in scheduling errors, 22% faster case turnaround, and 18% decrease in material waste through precise inventory sync. This represents $14,200 annual savings per operatory in operational overhead.
Conclusion: Strategic Positioning for 2026
Zirkonzahn’s open architecture milling systems provide critical flexibility in an era of fragmented dental software ecosystems. By prioritizing standardized interfaces over proprietary lock-in, they enable:
- Future-Proof Investment: Protection against single-vendor roadmap risks
- Hybrid Workflow Optimization: Seamless blending of chairside and lab production
- API-Driven Automation: Elimination of manual data handoffs (as demonstrated by Carejoy)
Recommendation: For labs/clinics operating multi-vendor environments or planning API-driven workflow automation, Zirkonzahn represents the optimal balance of precision engineering and ecosystem interoperability. Closed systems remain viable only for pure single-brand implementations with no future integration requirements.
Manufacturing & Quality Control
Digital Dentistry Technical Review 2026
Target Audience: Dental Laboratories & Digital Clinics
Brand: Carejoy Digital — Advanced Digital Dentistry Solutions
Manufacturing & Quality Control: Carejoy Digital Zirconia Milling Machines (Shanghai ISO 13485 Facility)
Carejoy Digital’s zirconia milling machines, engineered for high-precision CAD/CAM workflows, are manufactured at a fully ISO 13485-certified facility in Shanghai, China. The production and quality assurance (QA) pipeline integrates advanced automation, AI-driven diagnostics, and multi-stage validation to ensure clinical-grade reliability and micron-level accuracy.
Core Manufacturing Process
| Stage | Process | Technology & Standards |
|---|---|---|
| 1. Component Sourcing | High-tolerance CNC-machined parts, linear guides, spindle motors, and optical encoders sourced from Tier-1 suppliers with traceable material certifications. | RoHS-compliant; ISO 9001 supplier audits; blockchain-based material traceability. |
| 2. Subassembly Integration | Modular construction of spindle modules, gantry systems, and vacuum clamping units under cleanroom conditions (Class 10,000). | Automated torque control; real-time alignment verification via laser interferometry. |
| 3. Final Assembly | Integration of control electronics, AI-driven motion controllers, and open-architecture software stack (STL/PLY/OBJ compatible). | ESD-safe environment; dual-operator verification; firmware burn-in testing. |
| 4. Calibration & Sensor Alignment | On-site sensor calibration using metrology-grade reference blocks and dynamic load simulation. | Performed in ISO 17025-accredited sensor calibration labs; 6-point spindle runout verification (≤1.5 µm). |
Quality Control & Durability Testing
Every milling unit undergoes a 72-hour accelerated life cycle test simulating 5+ years of clinical use. Key QC protocols include:
| Test Type | Parameters | Standard Compliance |
|---|---|---|
| Dynamic Spindle Stability | Continuous operation at 40,000 RPM under variable load (zirconia, PMMA, cobalt-chrome) | ISO 13485:2016, IEC 60601-1 |
| Positional Accuracy | Laser-tracked linear motion accuracy (X/Y/Z); repeatability tested over 10,000 cycles | ±2 µm tolerance; verified with Renishaw ML80 |
| Thermal Drift Compensation | Operational stability across 15–35°C ambient; AI-adjusted thermal modeling | EN 60601-1-2 (EMC & thermal safety) |
| Dust & Debris Resistance | IP54-rated filtration; 500-hour milling debris exposure test | IEC 60529; internal particle counter validation |
Why China Leads in Cost-Performance Ratio for Digital Dental Equipment
China has emerged as the global epicenter for high-value digital dental manufacturing due to a confluence of strategic advantages:
- Integrated Supply Chain: Proximity to rare-earth magnets, precision bearings, and semiconductor packaging reduces lead times and logistics costs by up to 40%.
- Advanced Automation Infrastructure: Shanghai and Shenzhen facilities leverage AI-guided robotic assembly lines, reducing human error and increasing throughput.
- Government R&D Incentives: Tax credits and innovation grants for medical device manufacturers accelerate tech adoption (e.g., AI pathfinding algorithms for milling optimization).
- Scalable Workforce: Deep talent pool in mechatronics and biomedical engineering enables rapid prototyping and iterative design.
- Open Architecture Ecosystem: Chinese OEMs like Carejoy Digital support STL/PLY/OBJ natively, enabling seamless integration with global CAD software (exocad, 3Shape, MeshMixer).
As a result, Chinese-manufactured milling systems deliver 95% of the performance of premium European counterparts at 60–70% of the cost—redefining the cost-performance frontier in digital dentistry.
Carejoy Digital: Supporting the Future of Digital Dentistry
Backed by 24/7 remote technical support, over-the-air software updates, and AI-driven scanning integration, Carejoy Digital ensures minimal downtime and maximum adaptability across lab and clinical environments.
